P/N: 3000055796
X-Panel 4386a FPI-GPG-TG-S
X-Panel 4386a FPI-GPG-TG-S is a very large dynamic amorphous silicon (single-glass a-Si-TFT) flat panel Digital Detector Array (DDA) with DRZ-Plus or CsI scintillator optimized for high energy NDT applications with X-ray tubes up to 450 kV max energy.
| Product | X-Panel 43108a FQI-GHG-TG-H EU |
| Technology | |
| Sensor | Single-glass a-Si-TFT |
| Scintillator | DRZ-Plus or Csl |
| Active area | 430 x 860 mm |
| Pixel matrix | 3072 x 6144 |
| Pixel pitch | 140 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 10 G Ethernet |
| Max frame rate | 15 fps (1×1) / 30 fps (2×2) / 45 fps (3×3) / 60 fps (4×4) |
| Mechanics | |

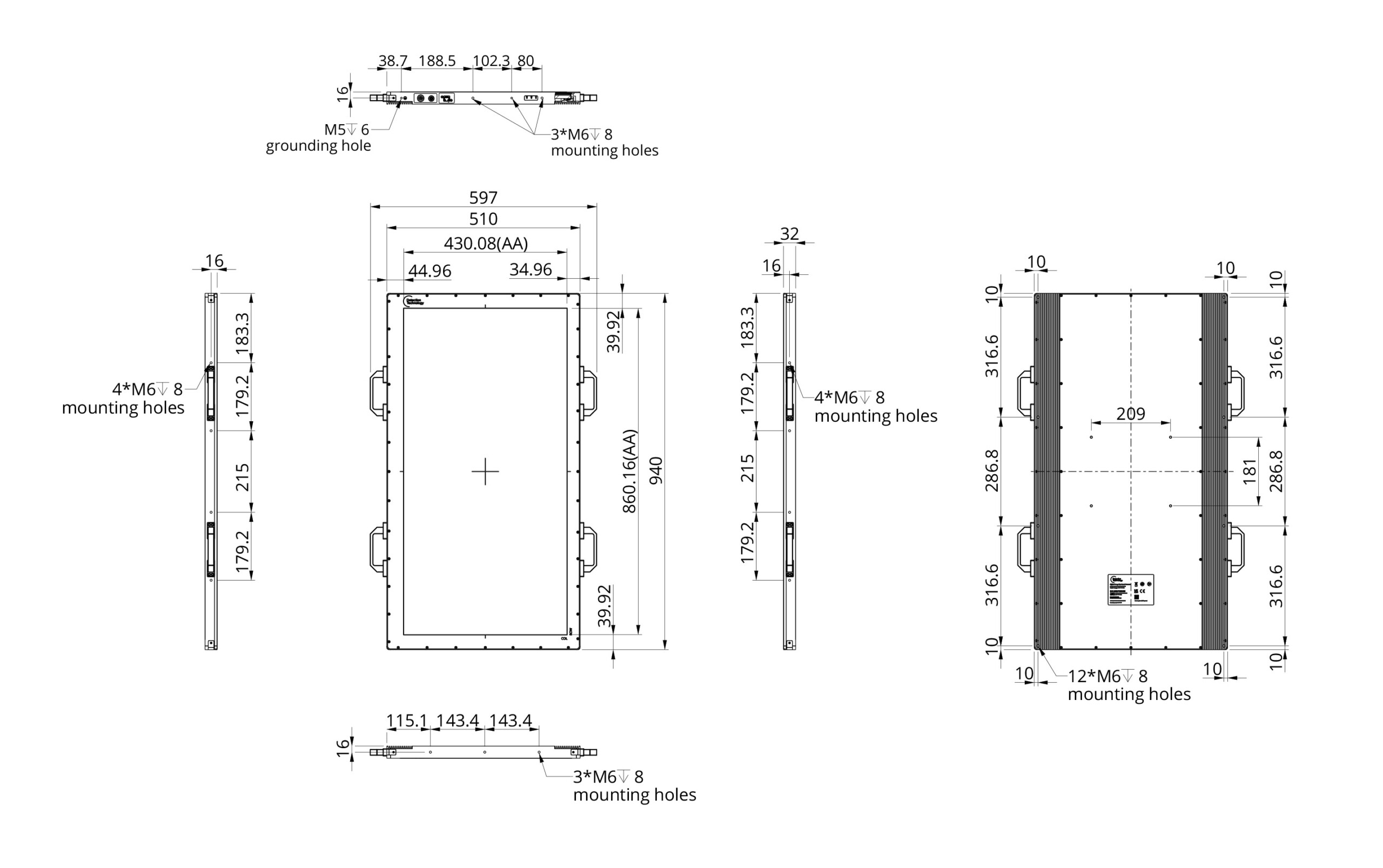

| Dimensions (H x W x D) | 940 x 510 x 32 mm |
| Weight | 58 kg |
| Environmental | |
| Temperature | 10~40°C (operating); -20~50°C (storage) |
| Humidity | 30~75% RH (non-condensing) |
| IP rating | IP65 |
| Power | |
| Consumption | 52 W |
| Applications | High Energy NDT with X-ray tube |
