Upsize industrial imaging with the X-Panel XL series. Built for big imaging performance, the X-Panel XL series delivers exceptional coverage, speed, and image quality for high-energy X-ray imaging applications.
We have been thinking big. Now it’s your turn.
Capture more. Scan faster. Upsize imaging.
X-Panel XL series is Detection Technology’s family of extra-large X-ray flat panel detectors (FPDs) for high-energy industrial imaging. Combining a large active area, single-glass TFT technology, high-speed 10G Ethernet connectivity, and flexible scintillator options, the series supports advanced industrial computed tomography (CT) and digital radiography (DR) applications where image quality, throughput, and reliability matter.
Available in two high-performance formats, the series includes the X-Panel 43108a FQI-H and X-Panel 4386a FPI-S. Both detectors deliver large-format imaging, high frame rates, and outstanding high-energy X-ray performance for demanding industrial inspection applications.
Choose the best option for your needs
Compare detector size, speed, and performance against industry standard solutions.

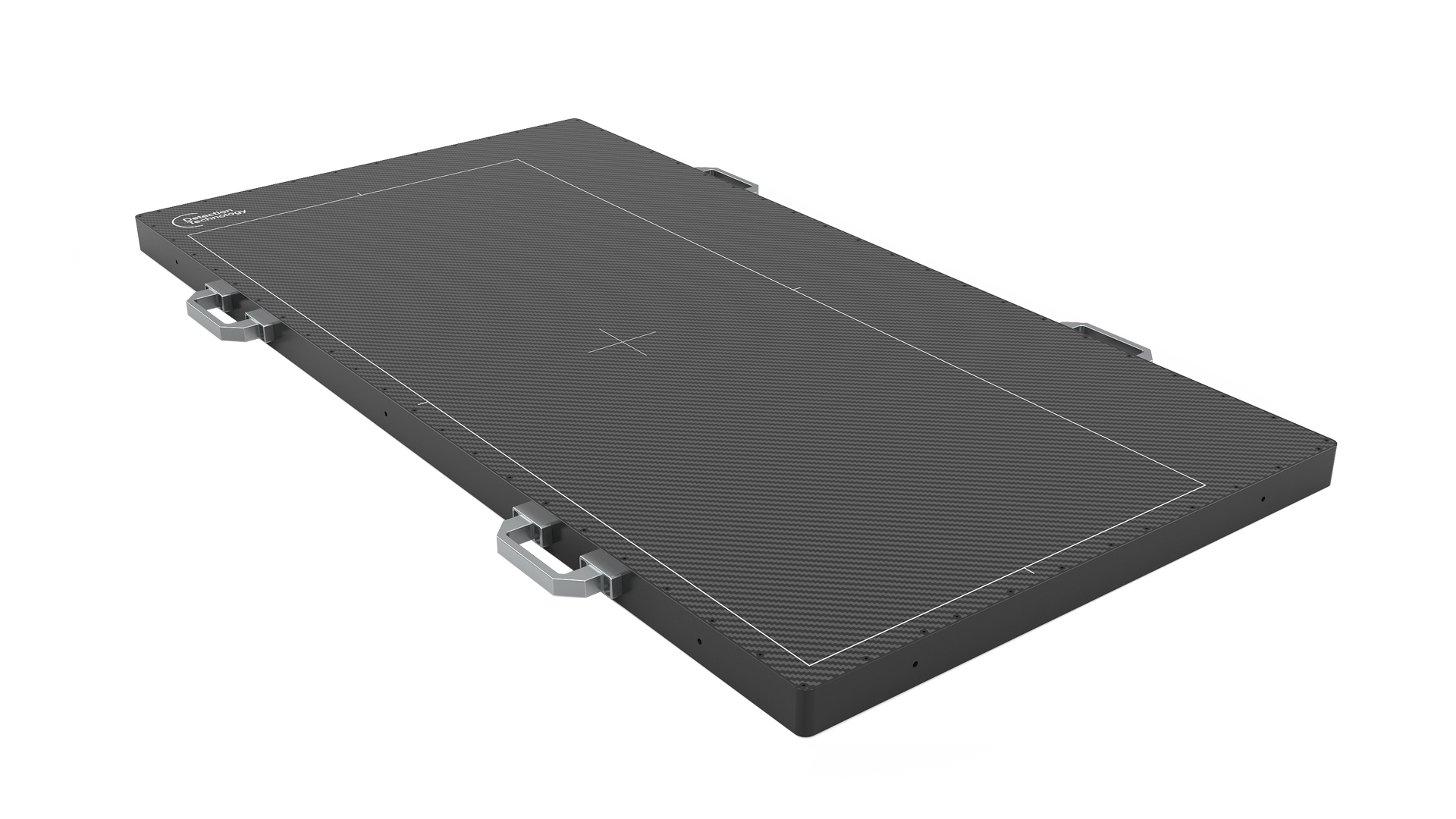

X-Panel 43108a
Size
Active area over 2x larger
Industry standard
Speed
Over 3x faster
Industry standard

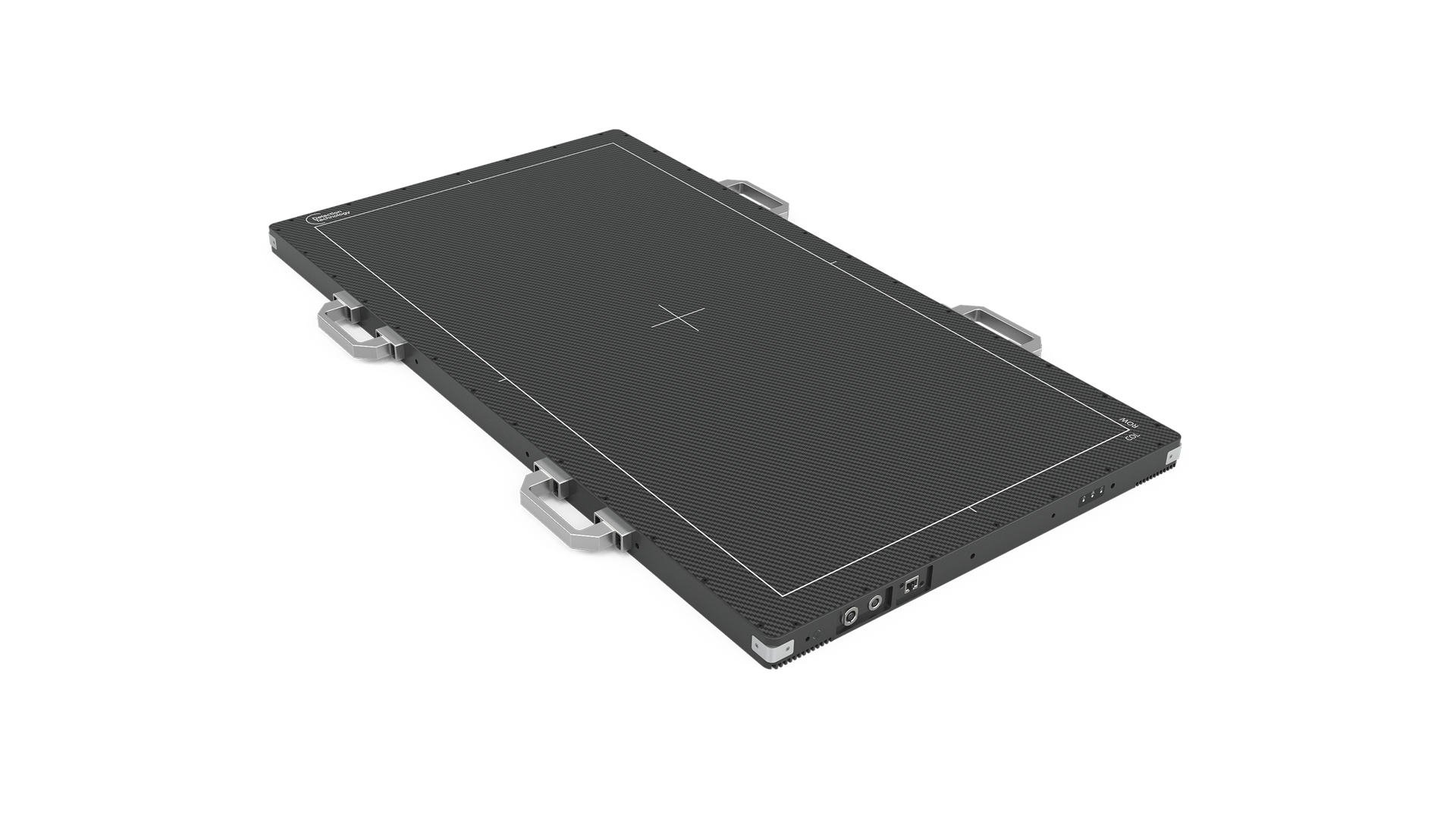

X-Panel 4386a
Size
Active area over 1.6x larger
Industry standard
Speed
Over 5x faster
Industry standard
Game-changer of industrial CT
“We placed our PolyCT rotation stage in front of DT’s X-Panel 43108a detector to scan five objects simultaneously. We achieved excellent CT results in the shortest possible time while maximizing the throughput of our high-energy CT system. Combined with downstream automated evaluation routines, this is a real game-changer for industrial CT!”
Michael Salamon, Group Manager, High-Energy X-ray Systems, Fraunhofer IIS
What are the key benefits of the X-Panel XL series?
The largest dynamic single-glass TFT detector
Enabling one-scan, high-quality imaging of large objects
High-speed imaging
Fast frame rates with multiple binning and ROI options increase throughput
Robust and industrial-ready
Engineered for demanding industrial applications
Versatile modalities
Supports both DR / 2D and CT / 3D systems
Designed for kV and MV imaging
Adaptable for various object sizes and densities
Novel form factor
Enables new types of X-ray inspection systems
Regulatory and ASTM compliance
Ensuring safety and seamless system integration
EU origin
Supporting faster deliveries and responsive customer support
Key features
- Technology single-glass a-Si-TFT
- Pixel size 140 μm
- Pixel matrix up to 3072 x 7680
- Panel size up to 430 mm x 1075 mm
- Energy range 40 kV~16 MV
- Interface 10G Ethernet
- Frame rate up to 60 fps
Applications
- Industrial CT and digital radiography (DR) systems
- Automotive inspection of large assemblies and battery systems
- Aerospace inspection of composite structures such as fuselage and wing sections
- Inspection of heavy castings and large industrial components
- Defence and ammunition inspection
- Conveyor-based manufacturing inspection systems
What are the key specifications of the X-Panel XL series?
Choose the X-Panel XL configuration that best fits your imaging requirements. The series includes detector options for X-ray tube and Linac applications, with scintillator configurations optimized for different energy levels, imaging speeds, and inspection tasks.
| Product | X-Panel 4386a FPI-GPG-TG-S | X-Panel 43108a FQI-GHG-TG-H | X-Panel 43108a FQI-GHC-TG-H |
| Sensor | Single-glass a-Si-TFT | Single-glass a-Si-TFT | Single-glass a-Si-TFT |
| Scintillator | DRZ-Plus or CsI | DRZ-High | DRZ-High with Cu filter |
| Active area | 430 x 860 mm | 430 x 1075 mm | 430 x 1075 mm |
| Pixel matrix | 3072 x 6144 | 3072 x 7680 | 3072 x 7680 |
| Pixel pitch | 140 μm | 140 μm | 140 μm |
| Data interface | 10 G Ethernet | 10 G Ethernet | 10 G Ethernet |
| Max frame rate | 15 fps (1×1) 30 fps (2×2) 45 fps (3×3) 60 fps (4×4) |
7.5 fps (1×1) 15 fps (2×2) 22.5 fps (3×3) 30 fps (4×4) |
7.5 fps (1×1) 15 fps (2×2) 22.5 fps (3×3) 30 fps (4×4) |
| Max energy | 450 kVp | 750 kVp | 16 MV |
X-Panel XL series FAQ
Technical specifications, model comparisons, and integration data for the high-energy XL product family.
What is the X-Panel XL series?
The X-Panel XL series is Detection Technology’s family of extra-large X-ray DDAs designed for high-energy industrial imaging applications. These detectors combine a large active area, single-glass TFT technology, and high-speed connectivity to support demanding imaging tasks. They may also be described as large-format flat panel detectors, or FPDs.
Which products are included in the X-Panel XL series?
The X-Panel XL series includes the X-Panel 43108a FQI-H and the X-Panel 4386a FPI-S. Together, they expand the available options for OEMs and system developers looking for large-format DDAs for industrial and specialized imaging systems.
What are the main applications for the X-Panel XL series?
The XL series is designed for high-energy imaging applications including industrial CT and DR. Depending on the detector configuration, these DDAs can support demanding industrial imaging tasks where large coverage, high throughput, and robust performance are required.
What are the main benefits of the X-Panel XL series?
The XL series offers several important benefits:
- Very large active area
- Single-glass TFT detector design (no stitching)
- Fast frame rates with binning options
- 10G Ethernet interface
- Windows and Linux SDK support
- Multiple scintillator choices
- Suitability for high-energy CT and DR imaging
These features make the XL series a strong platform for advanced DDA and FPD-based system development.
What is the maximum X-ray energy level supported by X-Panel 43108a and X-Panel 4386a?
X-Panel 43108a supports the following energy ranges:
- X-ray tube applications up to 750 kVp
- Linear accelerator applications up to 16 MV
X-Panel 4386a, is designed for X-ray tube applications up to 450 kVp energy.
What are the pixel pitch and resolution of X-Panel 43108a and X-Panel 4386a?
Both detectors use a 140 µm pixel pitch.
Pixel matrices are:
- X-Panel 43108a: 3072 × 7680
- X-Panel 4386a: 3072 × 6144
This gives system designers a combination of large-area coverage and detailed image capture.
What scintillator options are available?
The X-Panel XL Series supports multiple scintillator options, including:
- DRZ-Plus
- DRZ-High
- DRZ-High with copper filter for Linac applications
- Direct-deposition CsI
This allows the detector configuration to be matched to the imaging task, energy range, and system design goals.
What frame rates do X-Panel 43108a and X-Panel 4386a support?
The supported frame rates depend on the selected binning mode.
For X-Panel 43108a, the frame rates are:
- 7.5 fps (1×1)
- 15 fps (2×2)
- 22.5 fps (3×3)
- 30 fps (4×4)
For X-Panel 4386a, the frame rates are:
- 15 fps (1×1)
- 30 fps (2×2)
- 45 fps (3×3)
- 60 fps (4×4)
These options give system designers flexibility to balance spatial resolution and imaging speed according to the application requirements.
Do X-Panel 43108a and X-Panel 4386a require external X-ray shielding?
Shielding requirements depend on the detector model and application energy. X-Panel 43108a requires external shielding, and Detection Technology provides shielding instructions to support system design and installation. X-Panel 4386a includes internal shielding for energies up to 450 kVp, which can simplify integration in suitable system configurations. Final shielding design should always be matched to the application, energy level, and system geometry.
Have the X-Panel 43108a and X-Panel 4386a been characterized in accordance with ASTM E2597?
X-Panel 43108a and X-Panel 4386a detectors are characterized based on ASTM E2597M-22, and an ASTM Bad Pixel Certificate will be provided with each delivered detector. This gives customers a documented reference for detector quality using an established DDA evaluation method.
