P/N: 3000044073

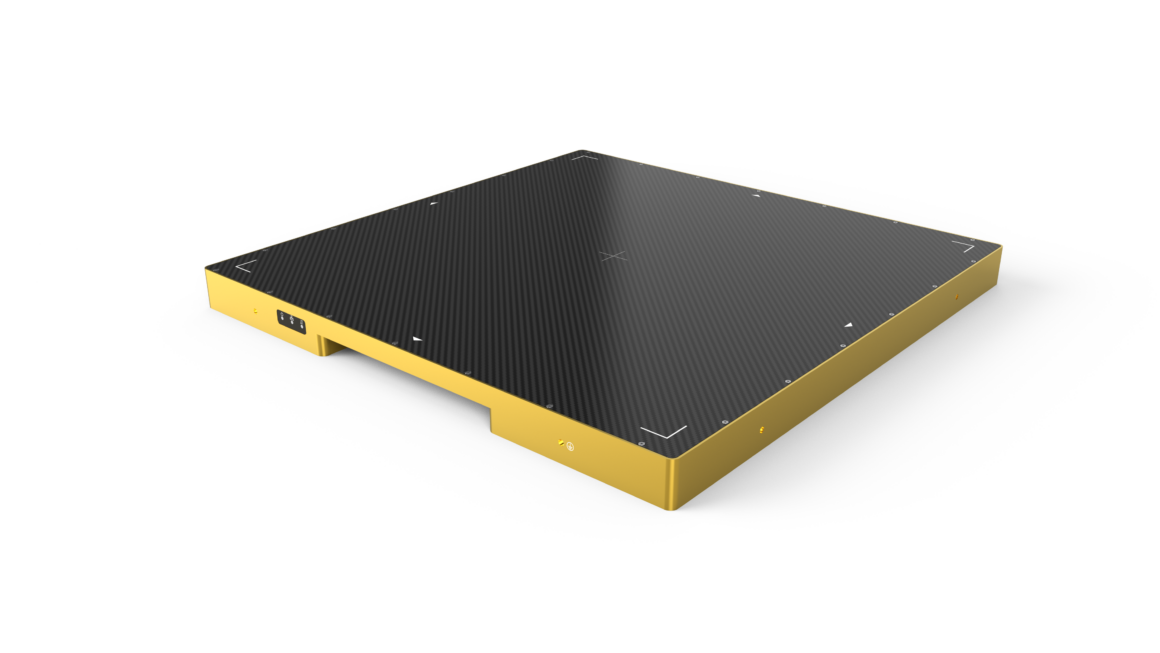

X-Panel 4343a FQI-CSV-X
X-Panel 4343a FQI-CSV-X is a dynamic high-resolution amorphous silicon (a-Si-TFT) flat panel detector with CsI scintillator optimized for battery inspection and NDT applications up to 160 kV max energy.
| Product | X-Panel 4343a FQI-CSV-X |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | CsI |
| Active area | 430 x 430 mm |
| Pixel matrix | 4288 x 4288 |
| Pixel pitch | 100 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | Optical Fiber |
| Max frame rate | 8 fps (1×1) / 15 fps (2×2) |
| Mechanics | |

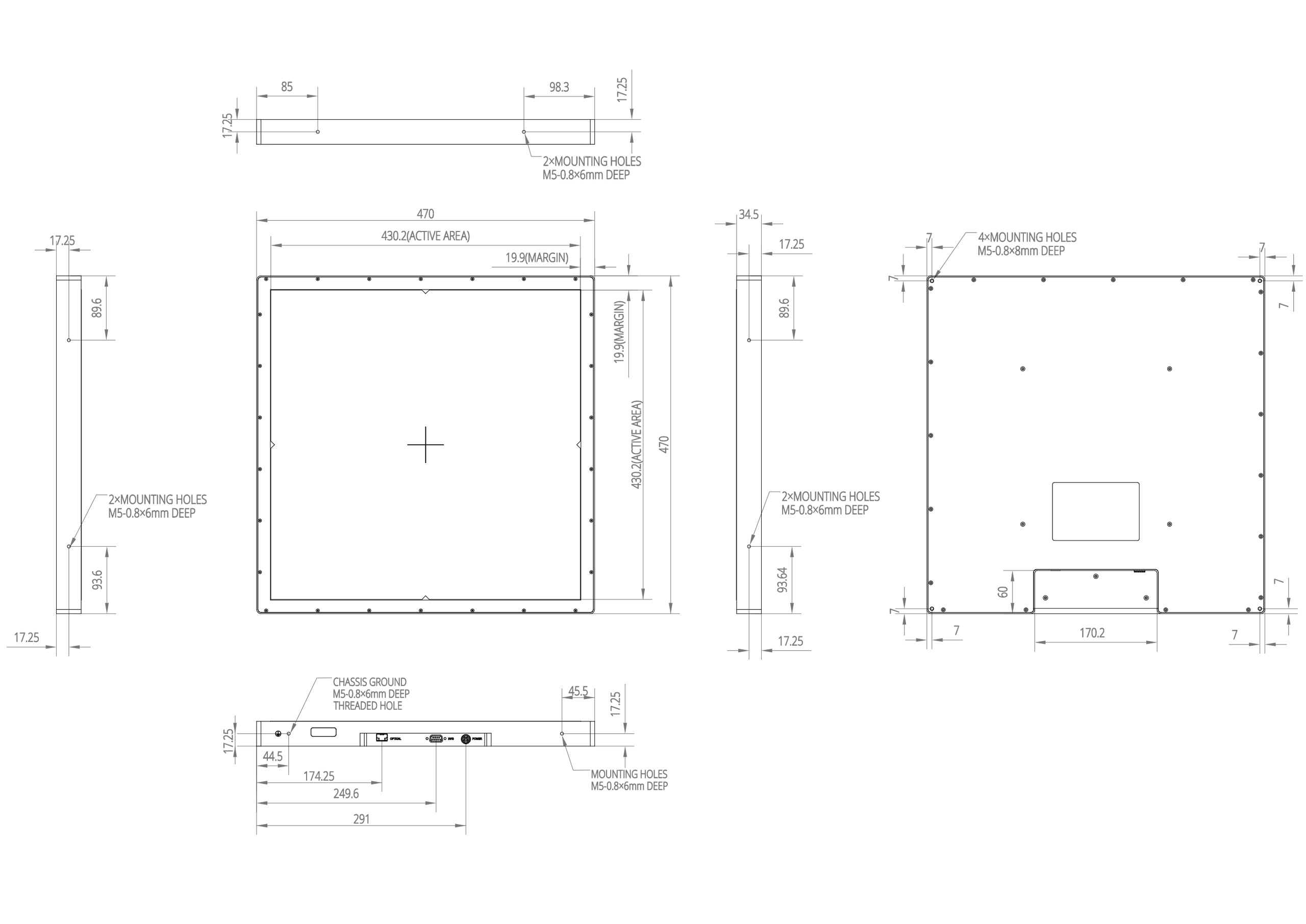

| Dimensions (H x W x D) | 470 x 470 x 34.5 mm |
| Weight | 10.8 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Consumption | 24 W |
| Applications | Casting, pipe welding, pressure container, industrial CT, battery inspection |
