P/N: 3000056328

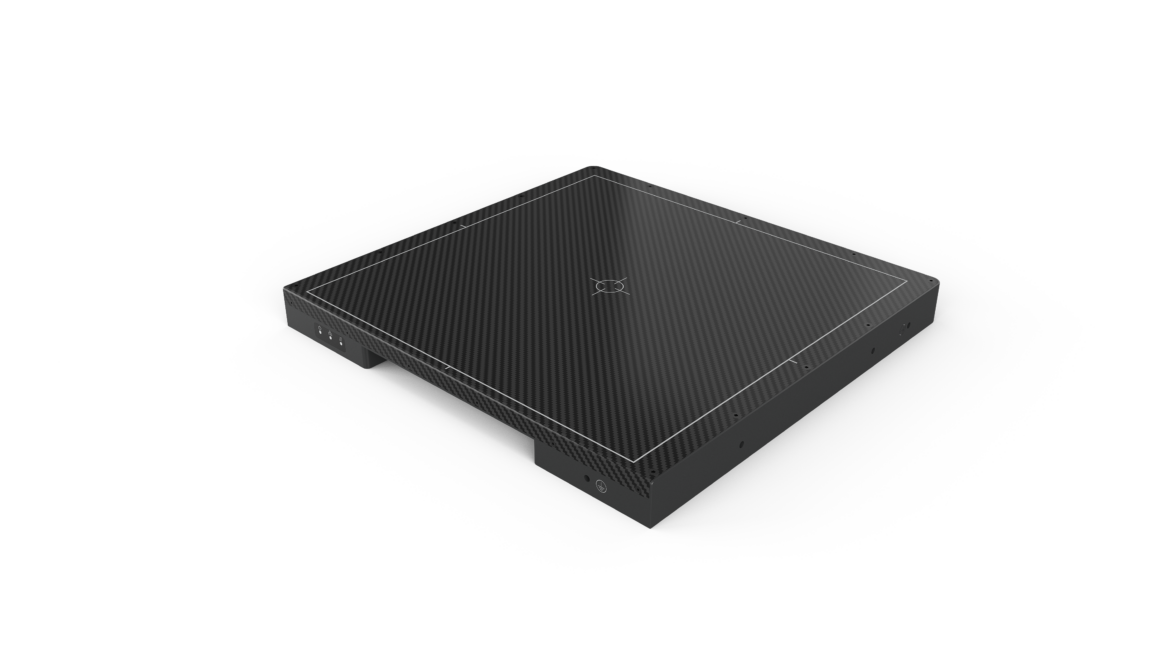

X-Panel 3030z FDM-CSG-TG-X
X-Panel 3030z FDM-CSG-TG-X is a dynamic high-resolution Indium Gallium Zinc Oxide (IGZO-TFT) flat panel detector optimized for dental CBCT imaging.
| Product | X-Panel 3030z FDM-CSG-TG-X |
| Technology | |
| Sensor | IGZO-TFT |
| Scintillator | CsI |
| Active area | 304 x 304 mm |
| Pixel matrix | 3072 x 3072 |
| Pixel pitch | 99 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | 10 G Ethernet |
| Max frame rate | 40 fps (1×1) / 80 fps (2×2) |
| Mechanics | |

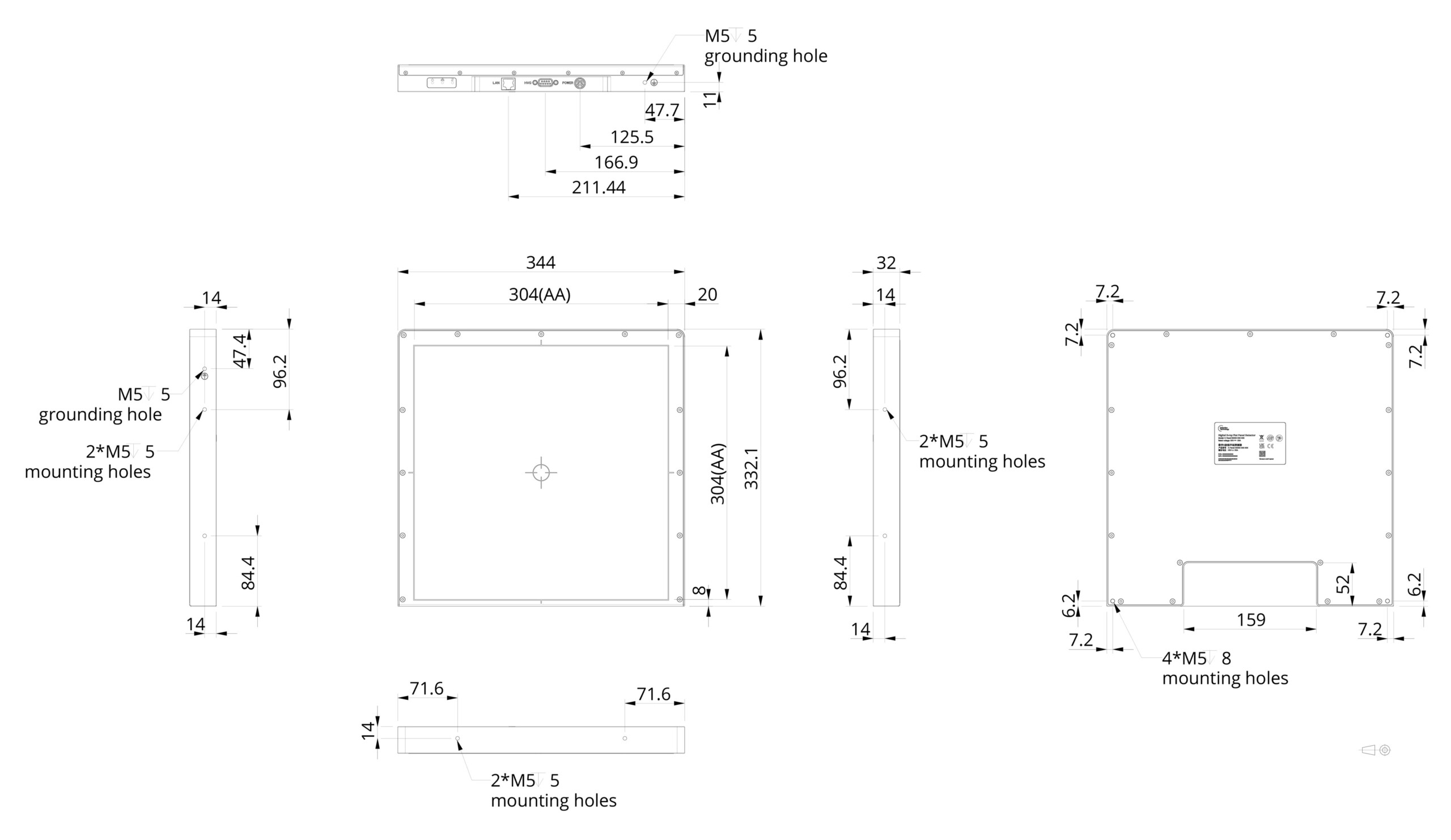

| Dimensions (H x W x D) | 344 x 332 x 32 mm |
| Weight | 4.1 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Consumption | 36 W |
| Applications | Dental CBCT |
