P/N: 3000046365

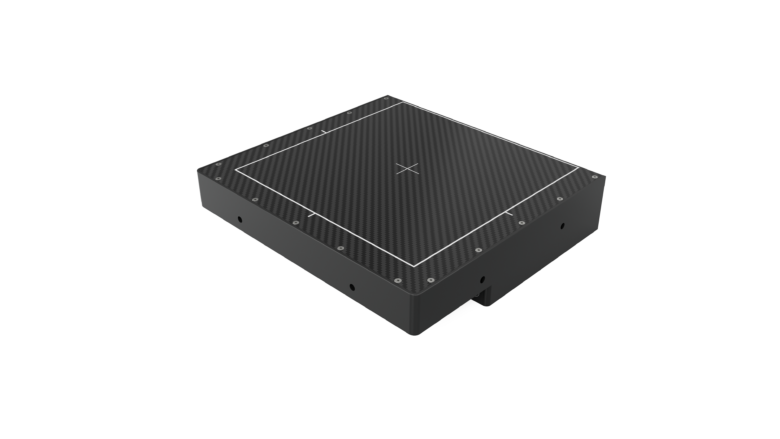

X-Panel 1515a FPI-CSV
X-Panel 1515a FPI-CSV-M is a dynamic high-resolution amorphous silicon (a-Si-TFT) flat panel detector with CsI scintillator optimized for battery and electronics inspection up to 350 kV max energy.
| Product | X-Panel 1515a FPI-CSV |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | CsI |
| Active area | 153 x 153 mm |
| Pixel matrix | 2048 x 2048 |
| Pixel pitch | 75 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 2.5 G Ethernet |
| Max frame rate | 18 fps (1×1) |
| Mechanics | |
| Dimensions (H x W x D) | 191 x 176.5 x 40 mm |
| Weight | 1.75 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 14 W |
| Applications | SMT, battery inspection |
