P/N: 3000043266
X-Panel 4343z FDI-CSV-TG-M
X-Panel 4343z FDI-CSV-TG-M is a dynamic high-resolution Indium Gallium Zinc Oxide (IGZO-TFT) flat panel detector with CsI scintillator optimized for battery and electronics inspection up to 350 kV max energy.
| Product | X-Panel 4343z FDI-CSV-TG-M |
| Technology | |
| Sensor | IGZO-TFT |
| Scintillator | CsI |
| Active area | 430 x 430 mm |
| Pixel matrix | 3072 x 3072 |
| Pixel pitch | 140 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 10G Ethernet |
| Max frame rate | 40 fps (1×1) / 80 fps (2×2) |
| Mechanics | |

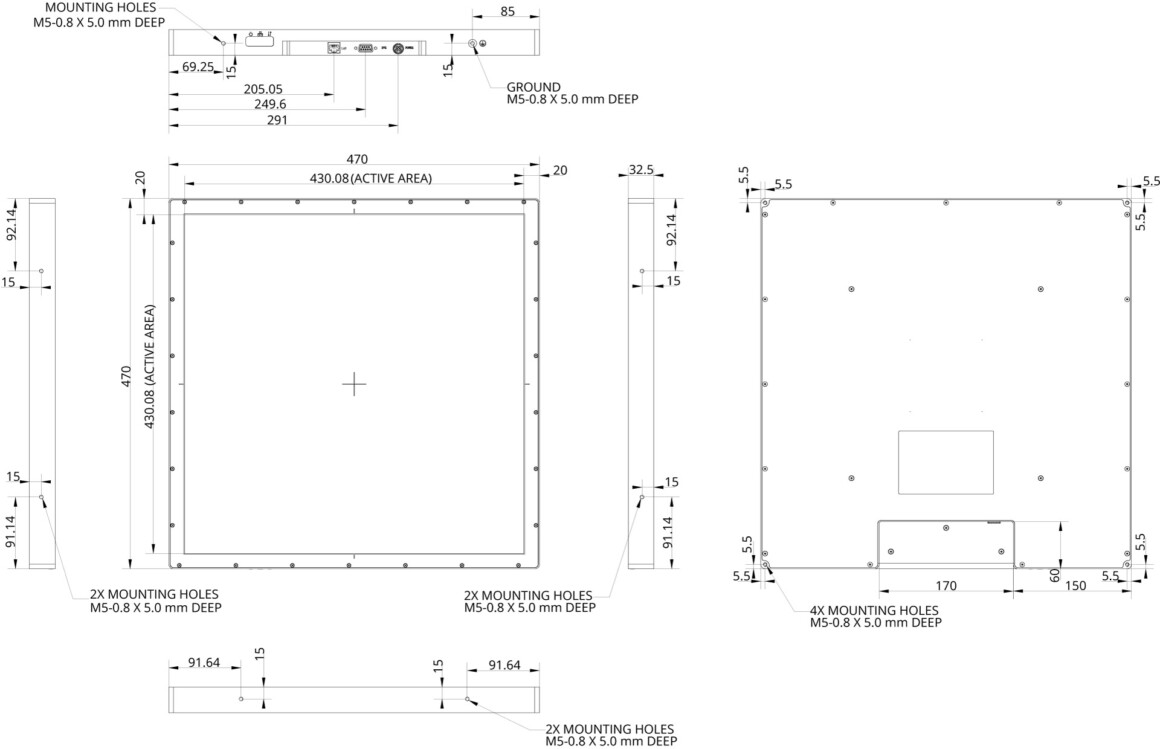

| Dimensions (H x W x D) | 470 x 470 x 32.5 mm |
| Weight | 15.5 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 29.5 W |
| Applications | Electronics, battery inspection, industrial CT |
