P/N: 3000041889
X-Panel 4343a PSV-CSV
X-Panel 4343a PSV-CSV is a portable amorphous silicon (a-Si-TFT) flat panel detector optimized for veterinary digital radiography.
| Product | X-Panel 4343a PSV-CSV |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | CsI |
| Active area | 430 x 430 mm |
| Pixel matrix | 3072 x 3072 |
| Pixel pitch | 140 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | Gigabit Ethernet |
| Max frame rate | ≤ 1 s |
| Mechanics | |

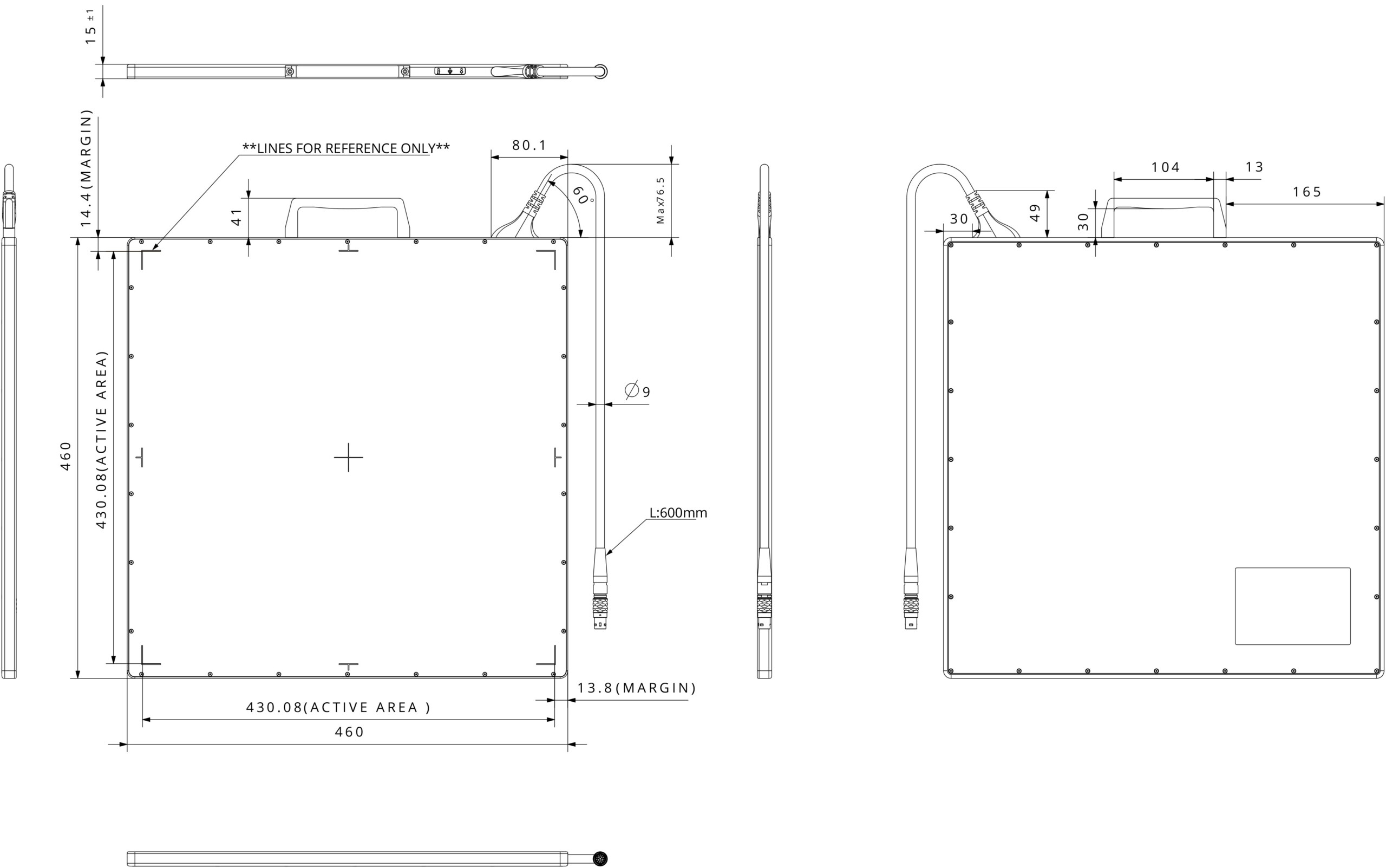

| Dimensions (H x W x D) | 460 x 460 x 15 mm |
| Weight | 4.6 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IP41 |
| Power | |
| Dissipation | 12.5 W |
| Applications | Veterinary portable DR |
