P/N: 3000042710
X-Panel 4343a PRM-CSV

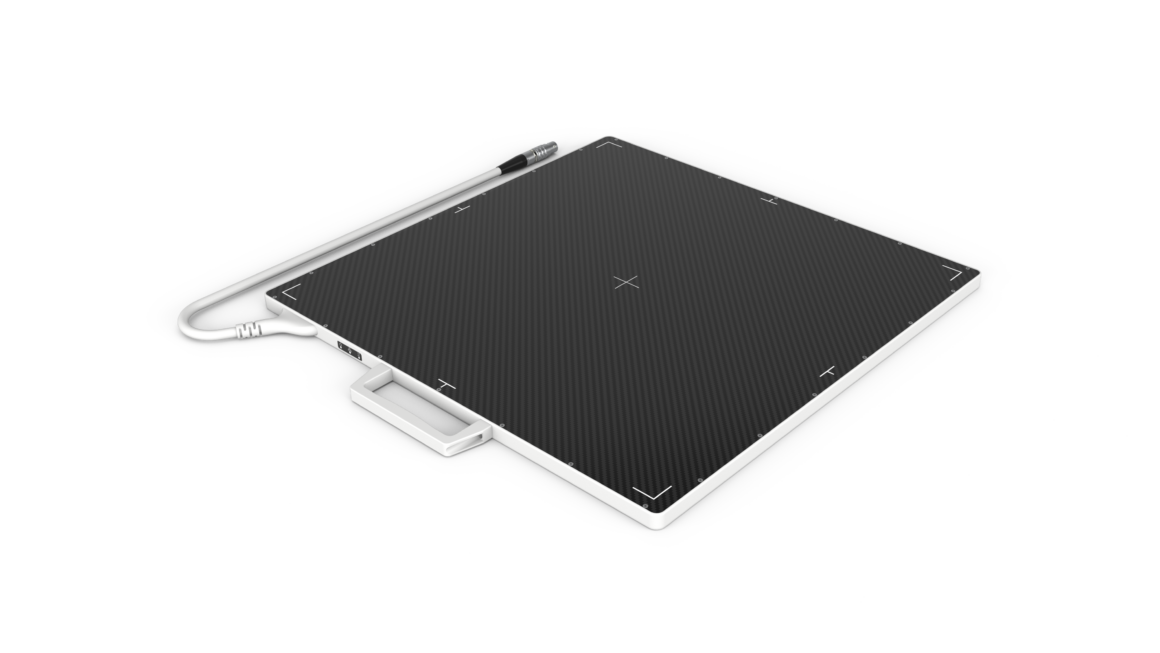

X-Panel 4343a PRM-CSV is a portable amorphous silicon (a-Si-TFT) flat panel detector optimized for digital radiography.
| Product | X-Panel 4343a PRM-CSV |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | CsI |
| Active area | 430 x 430 mm |
| Pixel matrix | 3072 x 3072 |
| Pixel pitch | 140 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | Gigabit Ethernet |
| Max frame rate | 4 fps (1×1) / 8 fps (2×2) / 12 fps (3×3) |
| Mechanics | |
| Dimensions (H x W x D) | 460 x 460 x 15 mm |
| Weight | 4.6 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IP41 |
| Power | |
| Dissipation | 14 W |
| Applications | Portable DR |
