P/N: 3000041884

X-Panel 4343a FSI-GPG

X-Panel 4343a FSI-GPG is a static amorphous silicon (a-Si-TFT) flat panel detector with DRZ-Plus scintillator optimized for NDT applications up to 160 kV max energy.

Product X-Panel 4343a FSI-GPG
Technology
Sensor a-Si-TFT
Scintillator DRZ-Plus
Active area 430 x 430 mm
Pixel matrix 3072 x 3072
Pixel pitch 140 μm
ADC 16 bits
Interface
Data interface Gigabit ethernet
Max frame rate ≤ 1 s
Mechanics

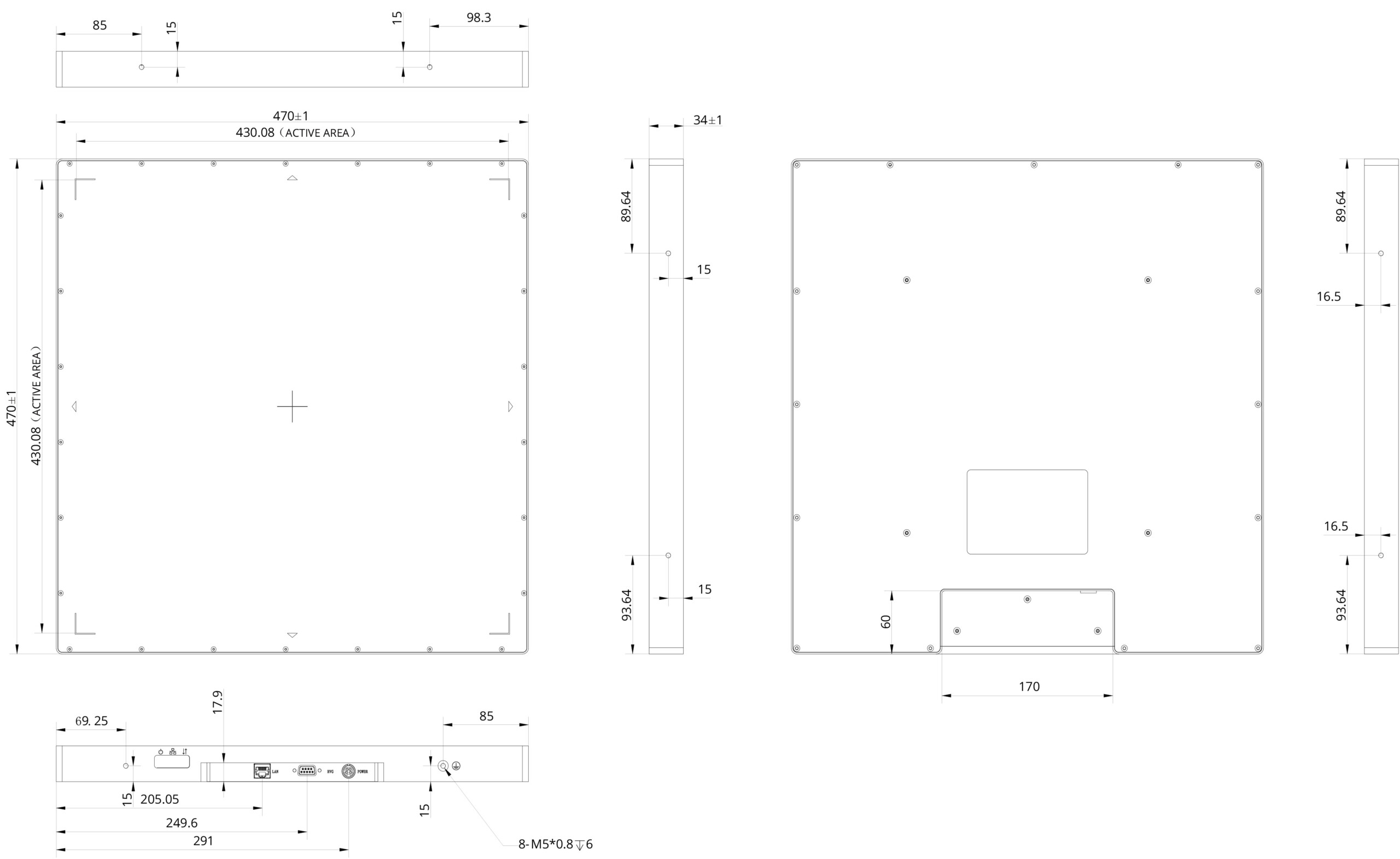

Dimensions (H x W x D) 470 x 470 x 34 mm
Weight 9.5 kg
Environmental
Temperature 10~35°C (operating); -10~50°C (storage)
Humidity 30~70% RH (non-condensing)
IP rating IPX0
Power
Dissipation 13 W
Applications Component counting, casting, pipe welding
