P/N: 3000046346
X-Panel 4343a FQM-GPG-UH
X-Panel 4343a FQM-GPG-UH is a dynamic amorphous silicon (a-Si-TFT) flat panel detector optimized for radiotherapy applications.
| Product | X-Panel 4343a FQM-GPG-UH |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | DRZ-Plus |
| Active area | 430 x 430 mm |
| Pixel matrix | 3072 x 3072 |
| Pixel pitch | 140 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | Optical Fiber |
| Max frame rate | 6 fps (1×1) / 12 fps (2×2) |
| Mechanics | |

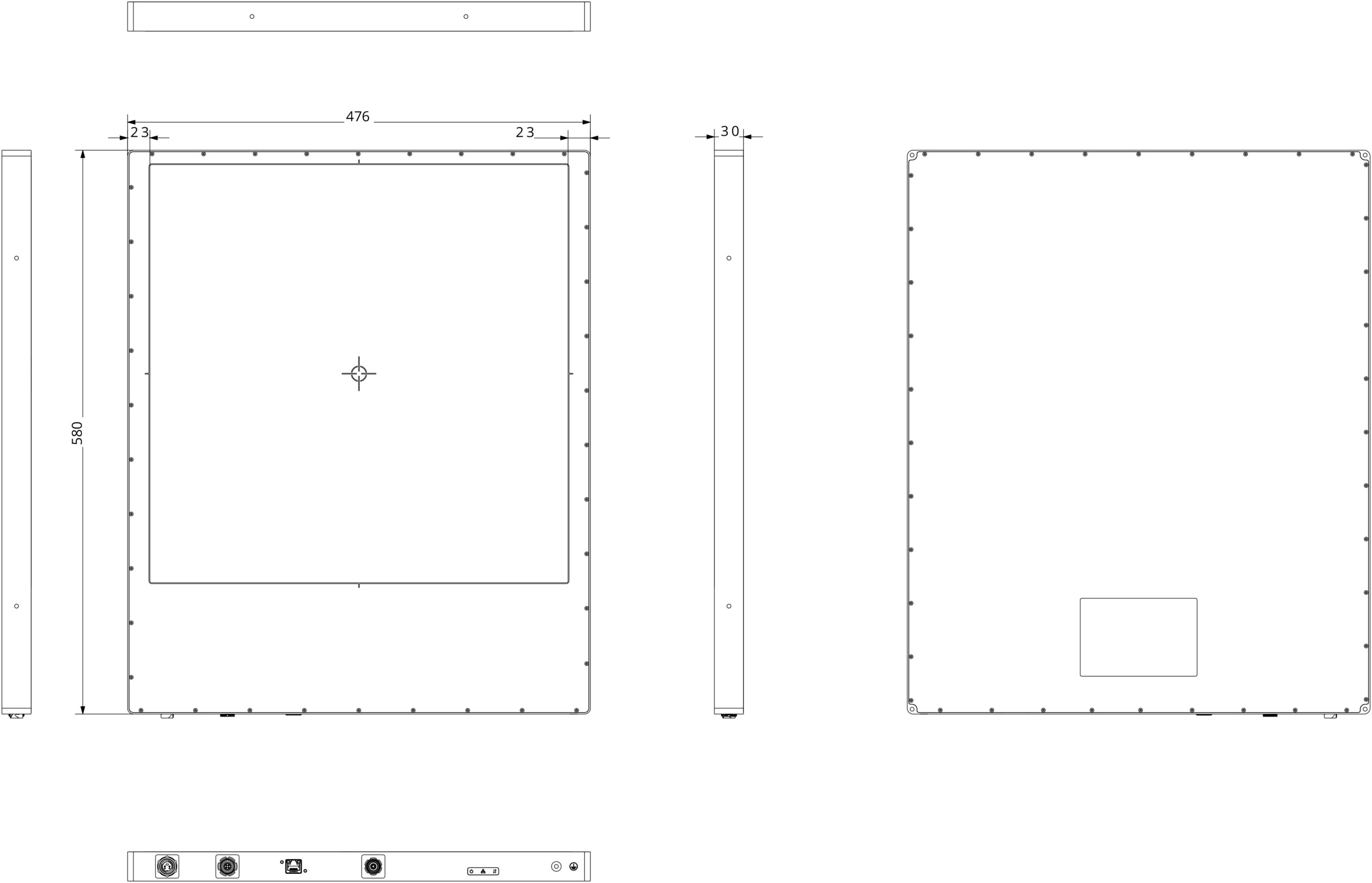

| Dimensions (H x W x D) | 476 x 580 x 30 mm |
| Weight | 8.5 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IP65 |
| Power | |
| Dissipation | 17.5 W |
| Applications | Oncology, IGRT |
