P/N: 3100048384
X-Panel 43108a FQI-GHG-TG-H EU
X-Panel 43108a FQI-GHG-TG-H EU is a very large dynamic amorphous silicon (single-glass a-Si-TFT) flat panel Digital Detector Array (DDA) with DRZ-High scintillator optimized for high energy NDT applications with X-ray tubes up to 750 kV max energy.
| Product | X-Panel 43108a FQI-GHG-TG-H EU |
| Technology | |
| Sensor | Single-glass a-Si-TFT |
| Scintillator | DRZ-High |
| Active area | 430 x 1075 mm |
| Pixel matrix | 3072 x 7680 |
| Pixel pitch | 140 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 10 G Ethernet |
| Max frame rate | 7.5 fps (1×1) / 15 fps (2×2) / 22.5 fps (3×3) / 30 fps (4×4) |
| Mechanics | |

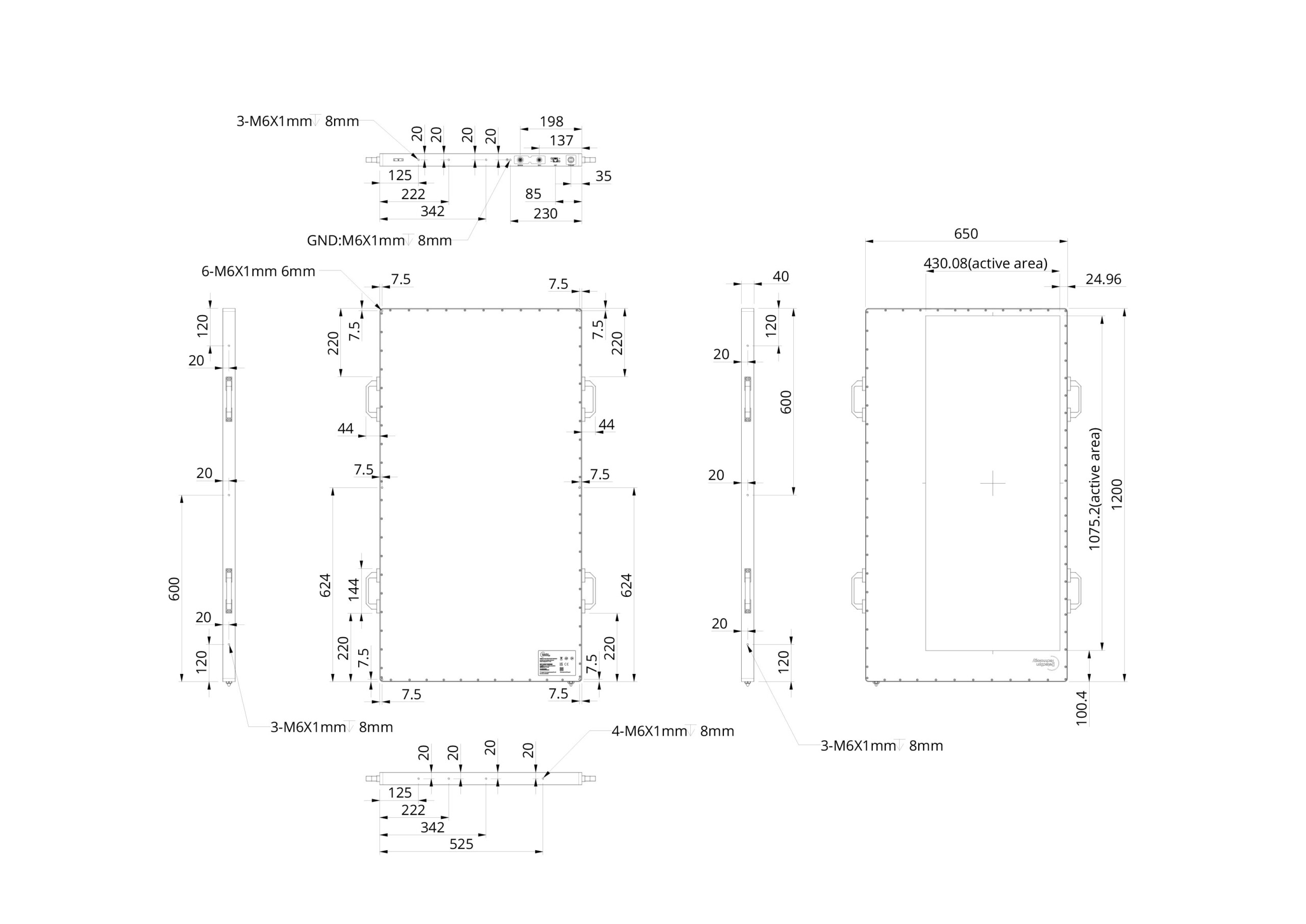

| Dimensions (H x W x D) | 1200 x 650 x 40 mm |
| Weight | 35 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IP65 |
| Power | |
| Dissipation | 35 W |
| Applications | High Energy NDT with X-ray tube |
