P/N: 3000045441

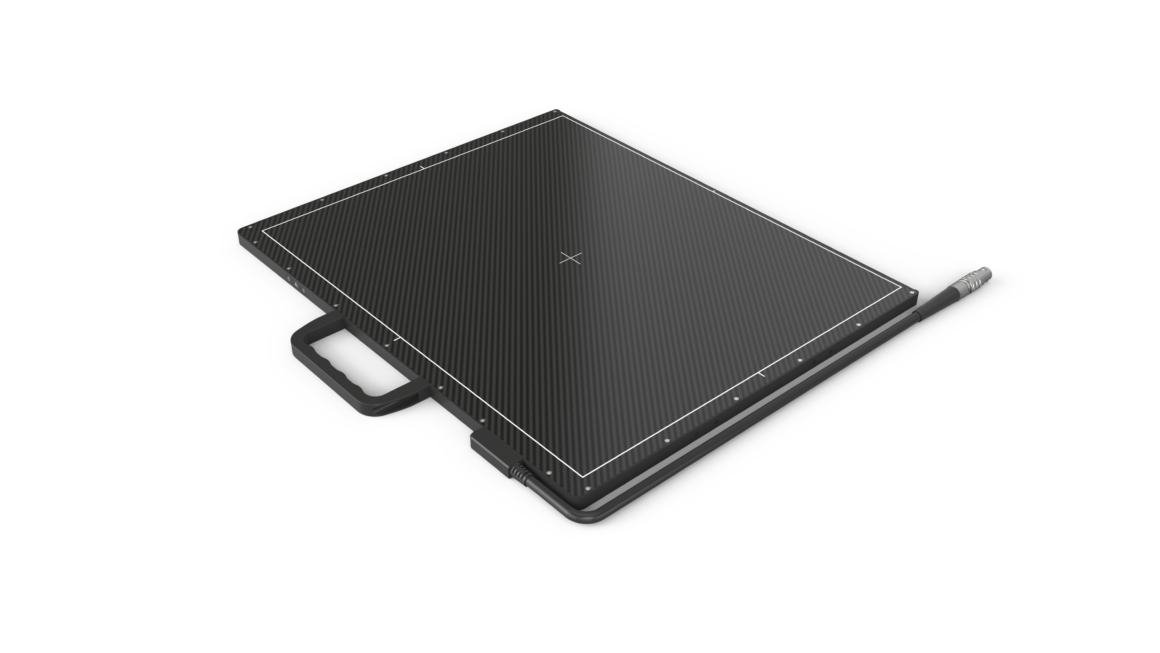

X-Panel 3543a PSI-CSV-T
X-Panel 3543a PSI-CSV-T is a static amorphous silicon (a-Si-TFT) flat panel detector optimized for Explosive Ordnance Disposal (EOD).
| Product | X-Panel 3543a PSI-CSV-T |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | CsI |
| Active area | 350 x 427 mm |
| Pixel matrix | 2500 x 3052 |
| Pixel pitch | 140 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | Gigabit ethernet |
| Max frame rate | ≤ 1 s |
| Mechanics | |

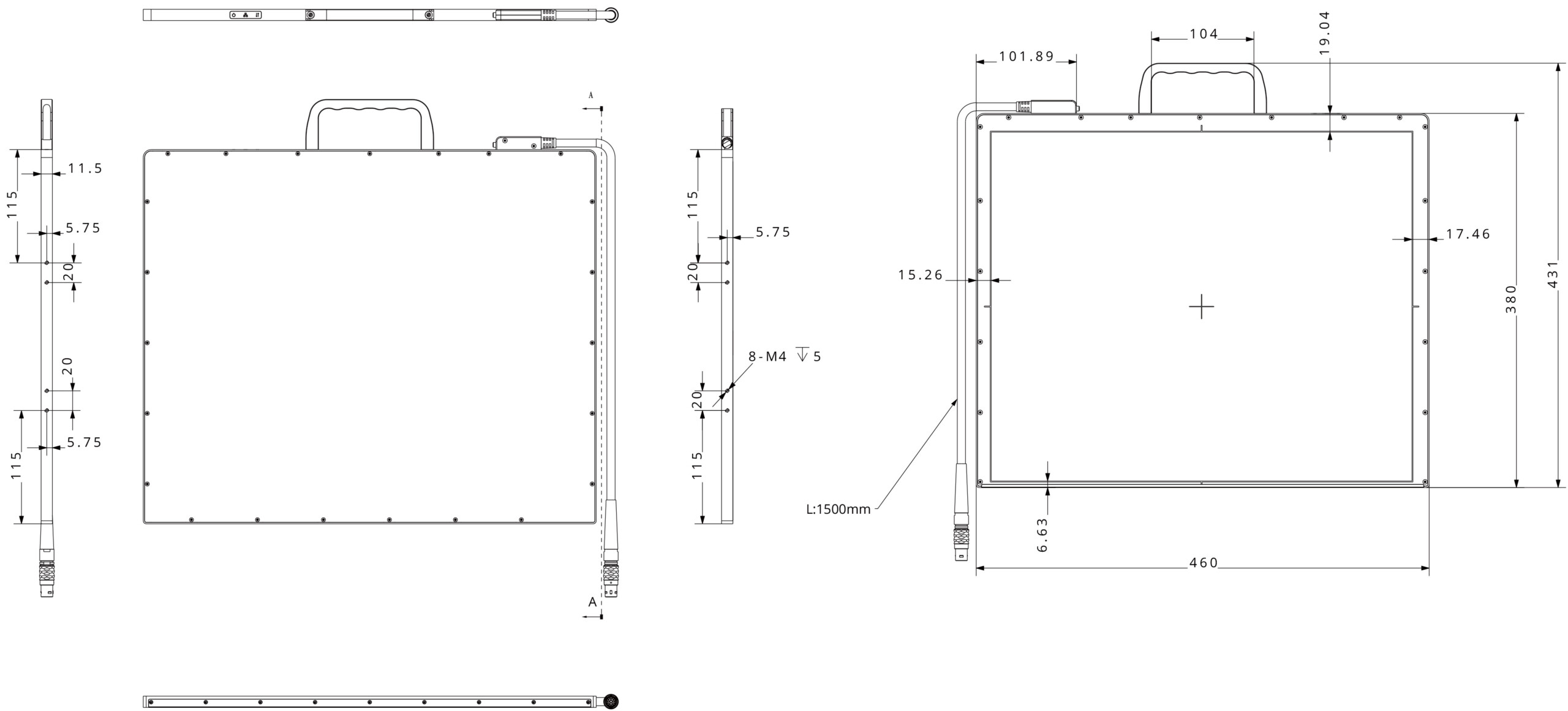

| Dimensions (H x W x D) | 460 x 380 x 11 mm |
| Weight | 2.25 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IP41 |
| Power | |
| Dissipation | 11 W |
| Applications | Security |
