P/N: 3000043268

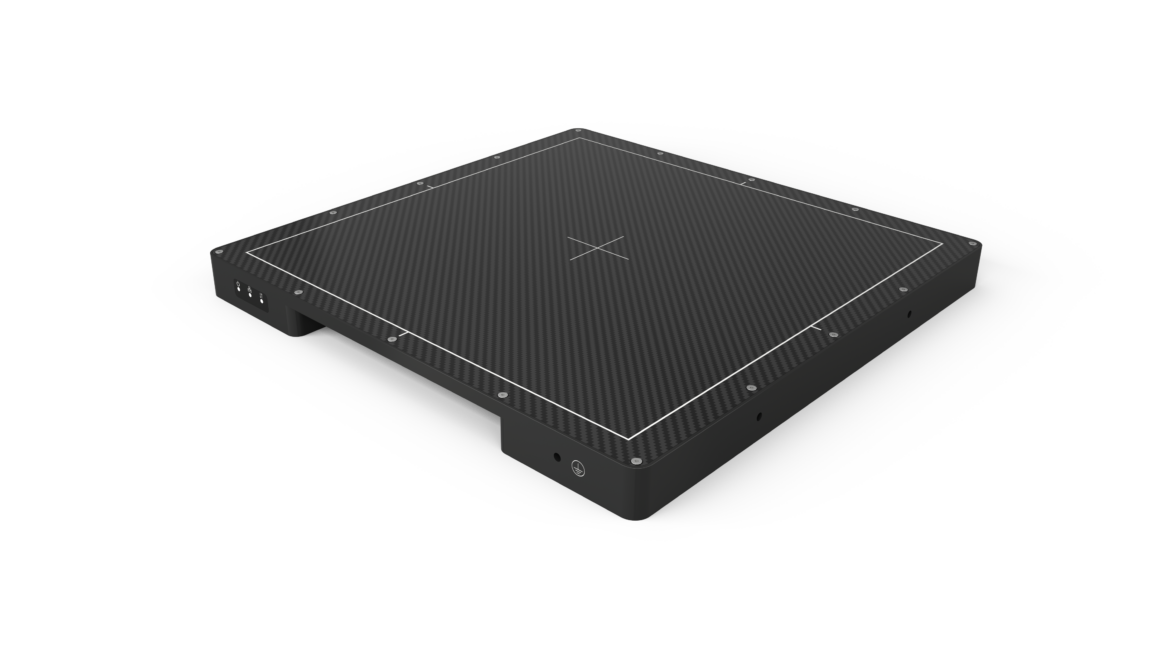

X-Panel 3030z FDM-CSV-TG
X-Panel 3030z FDM-CSV-TG is a dynamic Indium Gallium Zinc Oxide (IGZO-TFT) flat panel detector optimized for surgical imaging.
| Product | X-Panel 3030z FDM-CSV-TG |
| Technology | |
| Sensor | IGZO-TFT |
| Scintillator | CsI |
| Active area | 303 x 303 mm |
| Pixel matrix | 2048 x 2048 |
| Pixel pitch | 148 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | 10 G Ethernet |
| Max frame rate | 30 fps (1×1) / 60 fps (2×2) |
| Mechanics | |

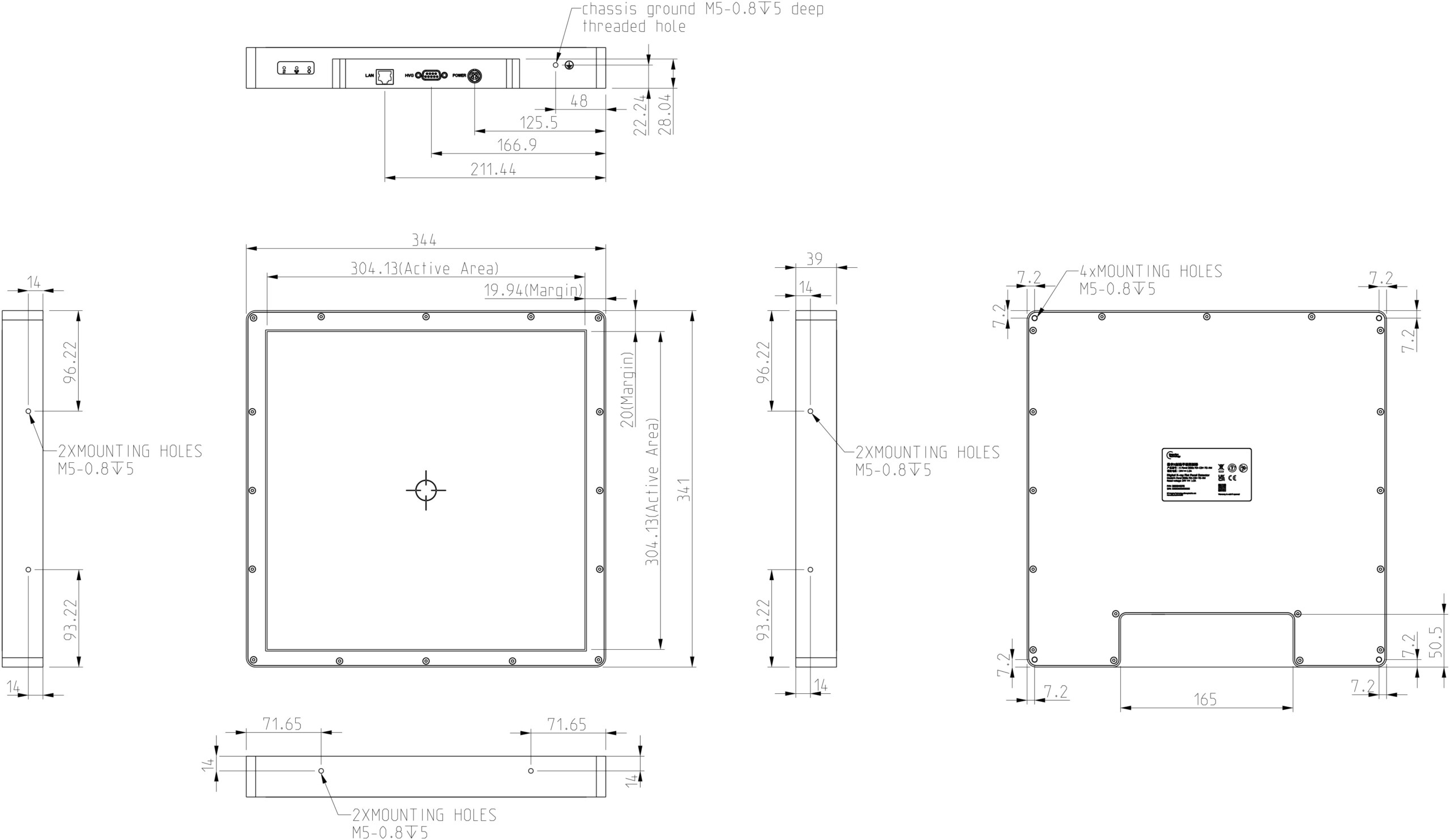

| Dimensions (H x W x D) | 344 x 341 x 28 mm |
| Weight | 4.5 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 17.5 W |
| Applications | Surgical, C-arm |
