P/N: 3000047262
X-Panel 3030a FPM-CSV-QG

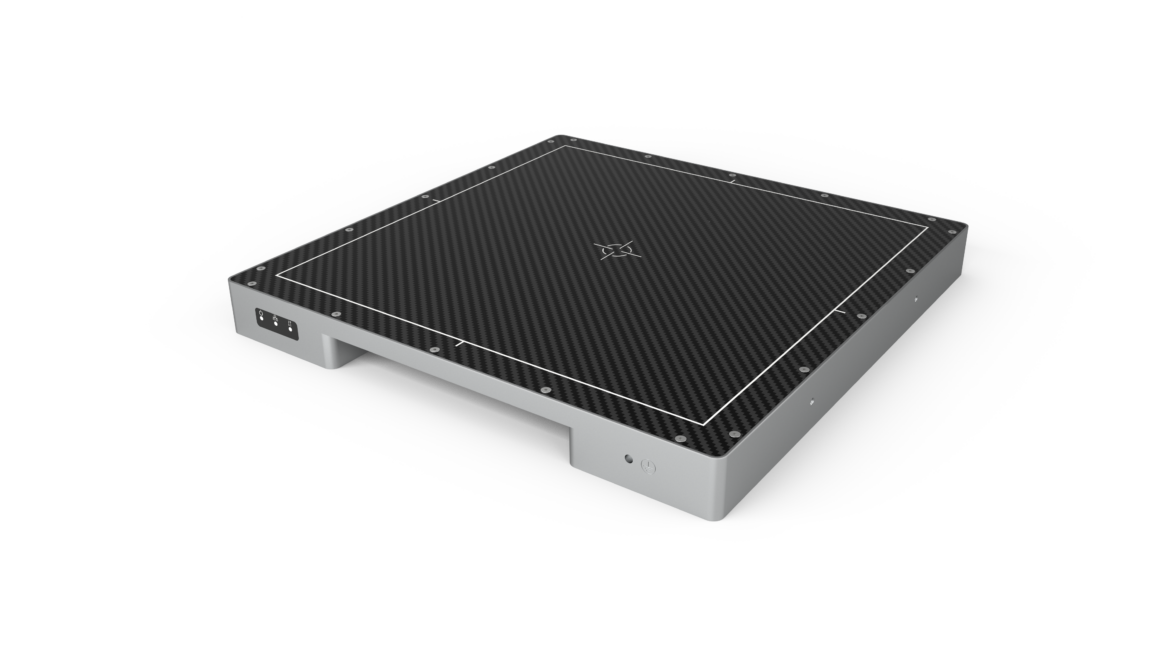

X-Panel 3030a FPM-CSV-QG is a dynamic amorphous silicon (a-Si-TFT) flat panel detector optimized for surgical imaging.
| Product | X-Panel 3030a FPM-CSV-QG |
| Technology | |
| Sensor | a-SI |
| Scintillator | CsI |
| Active area | 286 x 286 mm |
| Pixel matrix | 2048 x 2048 |
| Pixel pitch | 140 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | 2.5 G Ethernet |
| Max frame rate | 18 fps (1×1) / 36 fps (2×2) |
| Mechanics | |

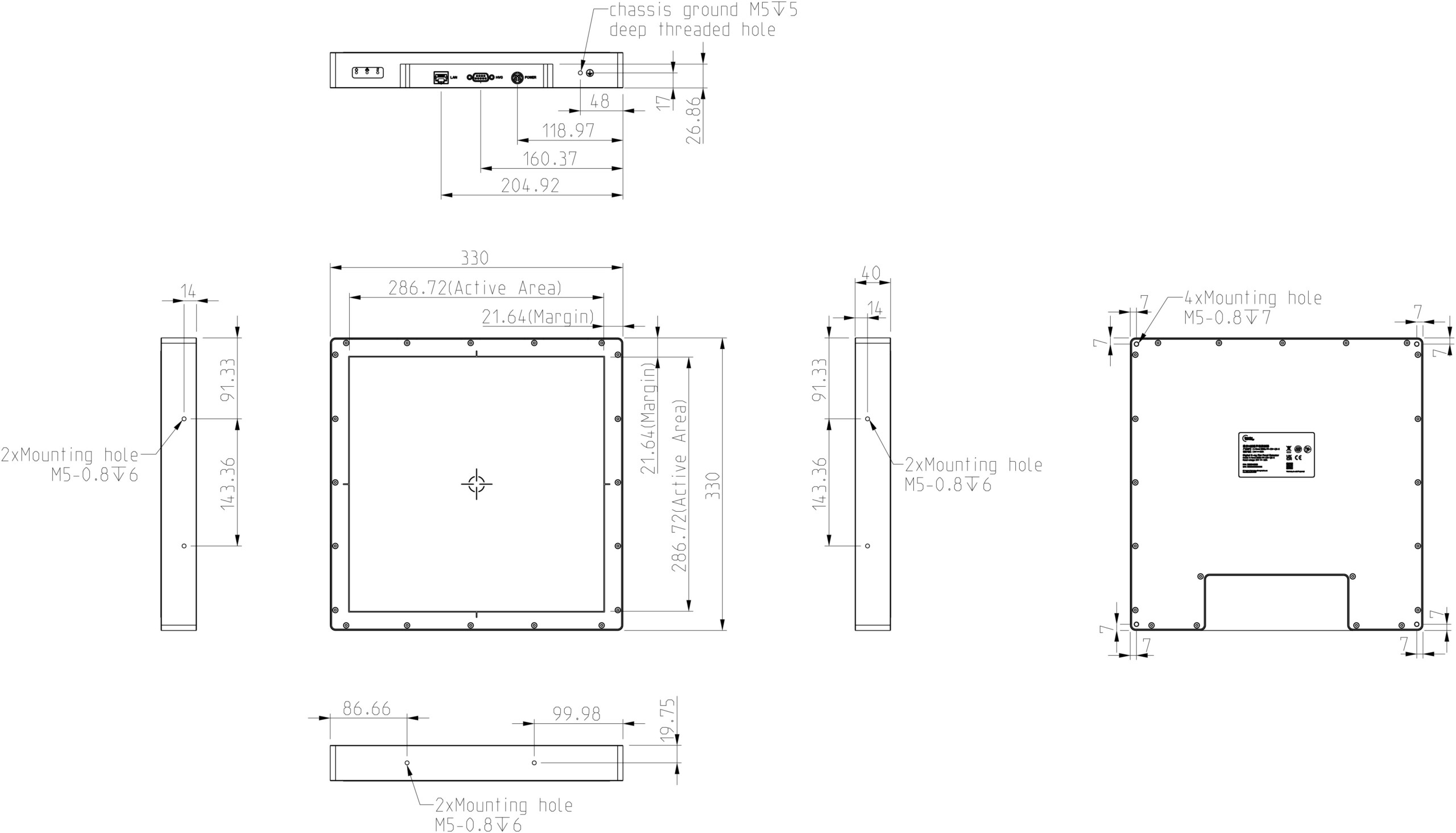

| Dimensions (H x W x D) | 330 x 330 x 40 mm |
| Weight | 7.2 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 15 W |
| Applications | Surgical, C-arm |
