P/N: 3000048751
X-Panel 3025a FSM-CSV
X-Panel 3025a FSM-CSV is a static amorphous silicon (a-Si-TFT) flat panel detector optimized for one-shot cephalometric imaging.
| Product | X-Panel 3025a FSM-CSV |
| Technology | |
| Sensor | a-SI |
| Scintillator | CsI |
| Active area | 286 x 250 mm |
| Pixel matrix | 2048 x 1792 mm |
| Pixel pitch | 140 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | Gigabit ethernet |
| Max frame rate | ≤ 1 s |
| Mechanics | |

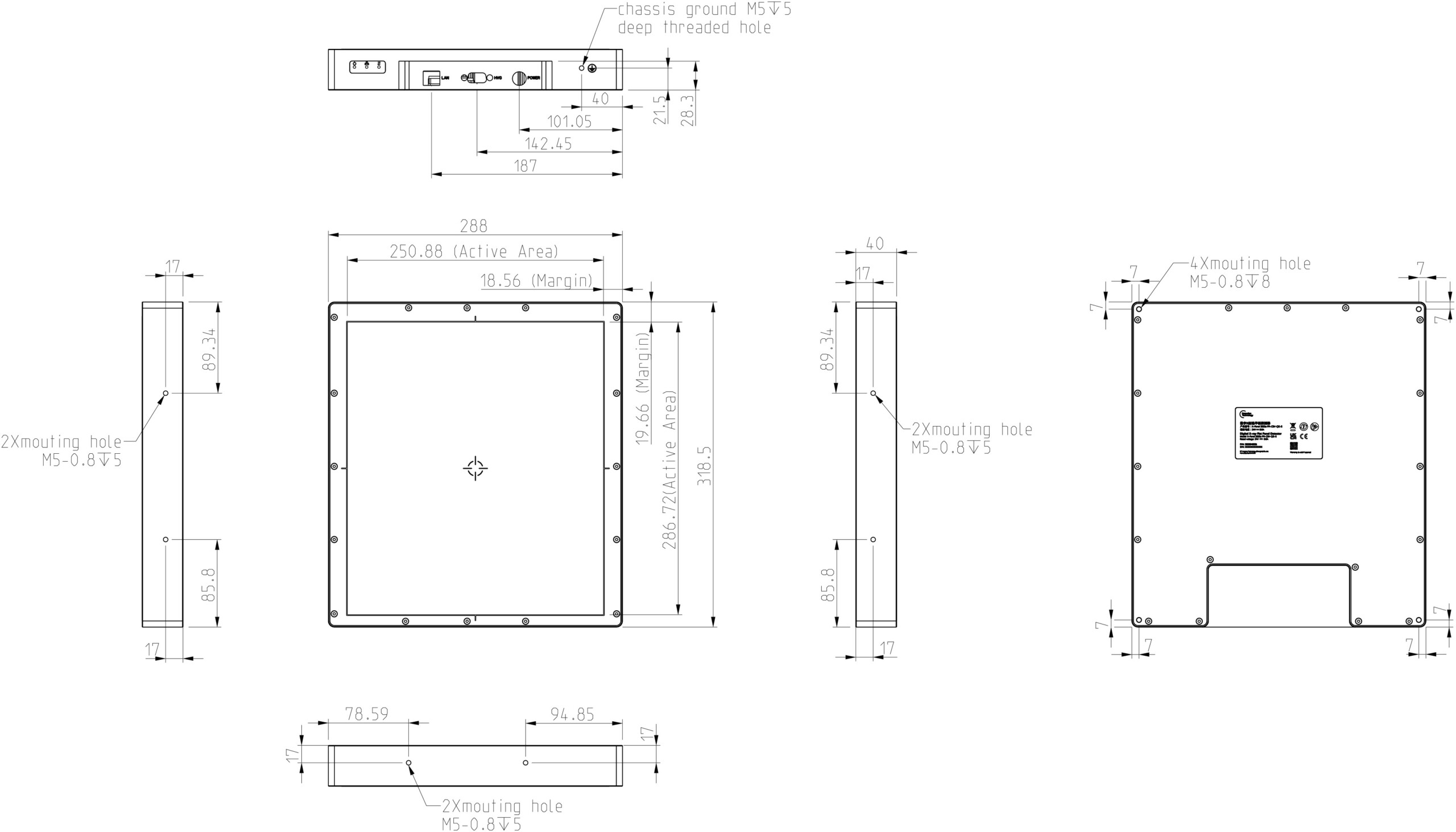

| Dimensions (H x W x D) | 318.5 x 288 x 40 mm |
| Weight | 5.7 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 14.5 W |
| Applications | Dental CBCT |
