P/N: 3000045432
X-Panel 3025a FPI-CSV-QG
X-Panel 3025a FPI-CSV-QG is a dynamic amorphous silicon (a-Si-TFT) flat panel detector with CsI scintillator optimized for NDT applications up to 160 kV max energy.
| Product | X-Panel 3025a FPI-CSV-QG |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | CsI |
| Active area | 250 x 286 mm |
| Pixel matrix | 1792 x 2048 |
| Pixel pitch | 140 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 2.5 G Ethernet |
| Max frame rate | 20 fps (1×1) |
| Mechanics | |

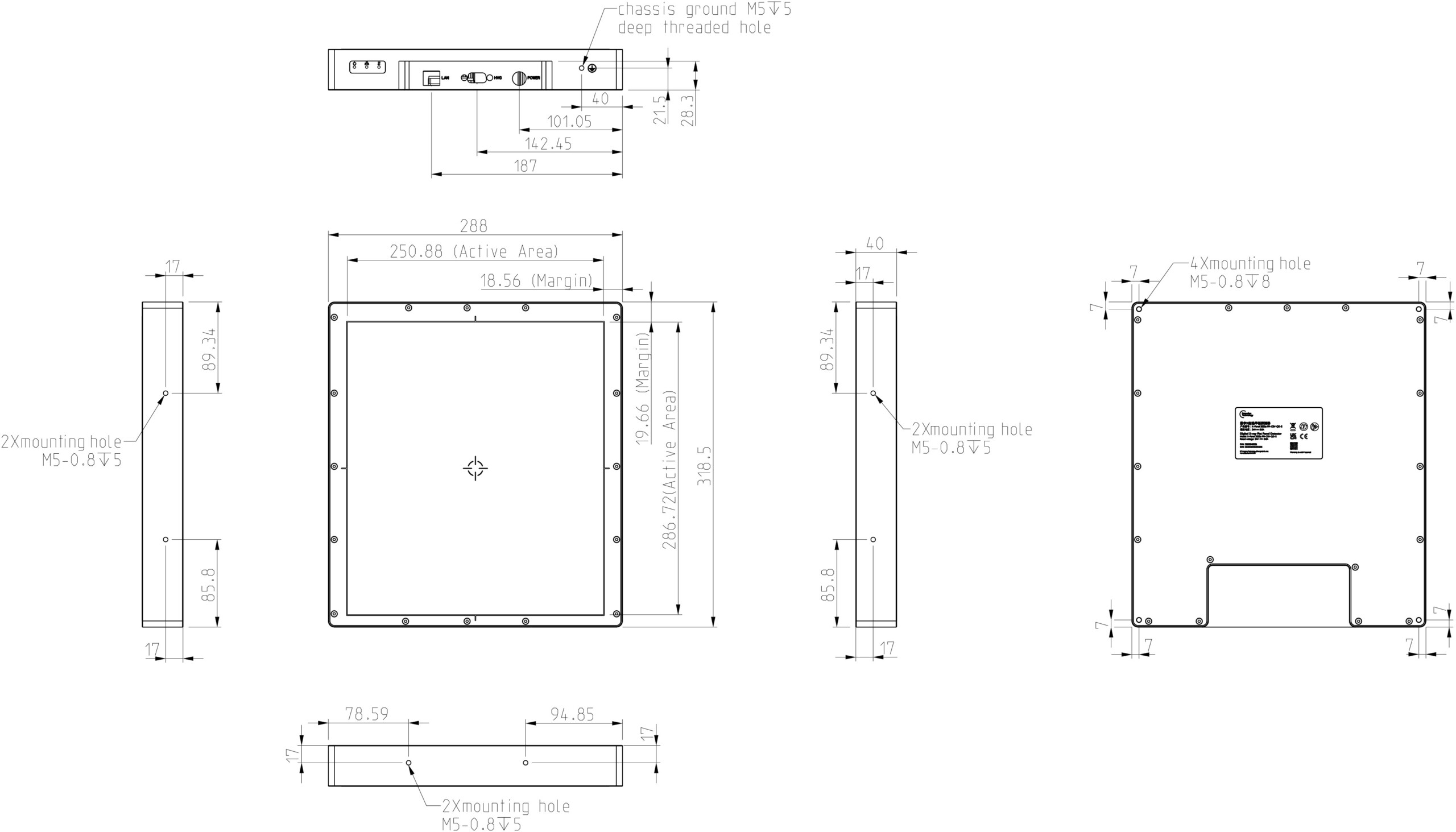

| Dimensions (H x W x D) | 318.5 x 288 x 40 mm |
| Weight | 4.3 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 14.5 W |
| Applications | Casting, pipe welding, pressure container, industrial CT |
