P/N: 3000041950
X-Panel 2530a FQI-GPG-X
X-Panel 2530a FQI-GPG-X is a dynamic high-resolution amorphous silicon (a-Si-TFT) flat panel detector with DRZ-Plus scintillator optimized for NDT applications up to 160 kV max energy.
| Product | X-Panel 2530a FQI-GPG-X |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | DRZ-Plus |
| Active area | 243 x 307 mm |
| Pixel matrix | 2432 x 3072 |
| Pixel pitch | 100 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 2.5 G Ethernet |
| Max frame rate | 15 fps (1×1) / 30 fps (2×2) |
| Mechanics | |

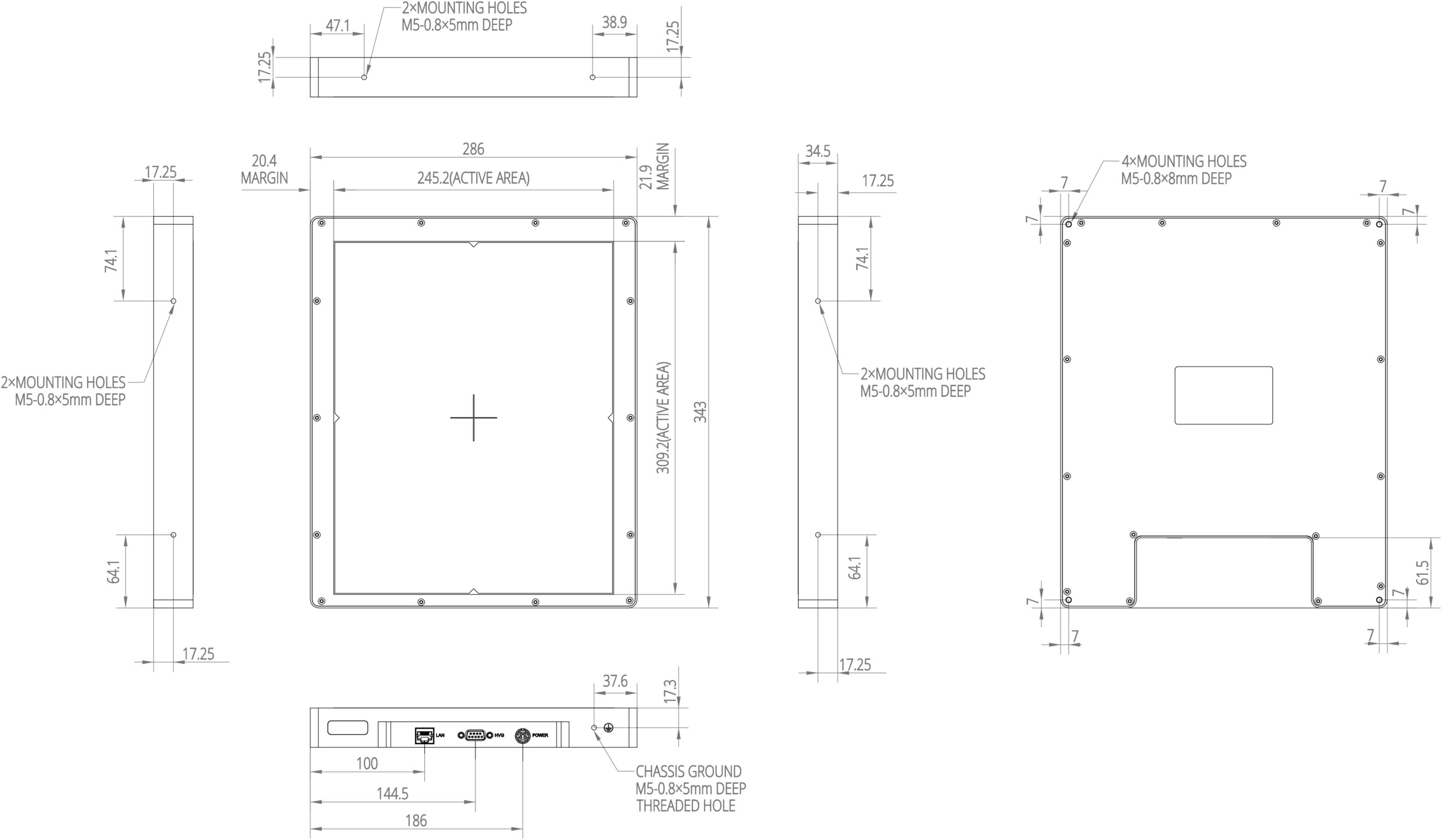

| Dimensions (H x W x D) | 343 x 286 x 34.5 mm |
| Weight | 4.4 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 16.5 W |
| Applications | Battery inspections, electronics |
