P/N: 3000050116
X-Panel 2520z FOM-CSG-TG

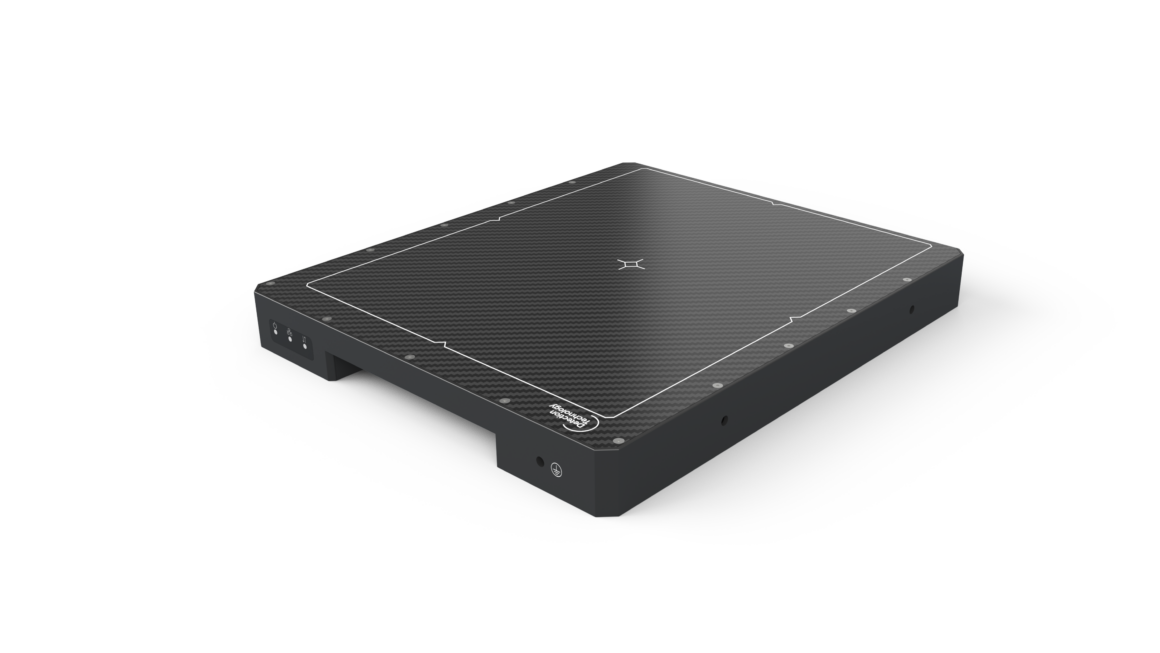

X-Panel 2520z FOM-CSG-TG is a lead-free dynamic Indium Gallium Zinc Oxide (IGZO-TFT) flat panel detector optimized for dental panoramic and CBCT imaging.
| Product | X-Panel 2520z FOM-CSG-TG |
| Technology | |
| Sensor | IGZO-TFT |
| Scintillator | CsI |
| Active area | 253 x 202 mm |
| Pixel matrix | 2560 x 2048 |
| Pixel pitch | 99 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | 10 G Ethernet |
| Max frame rate | 25 fps |
| Mechanics | |

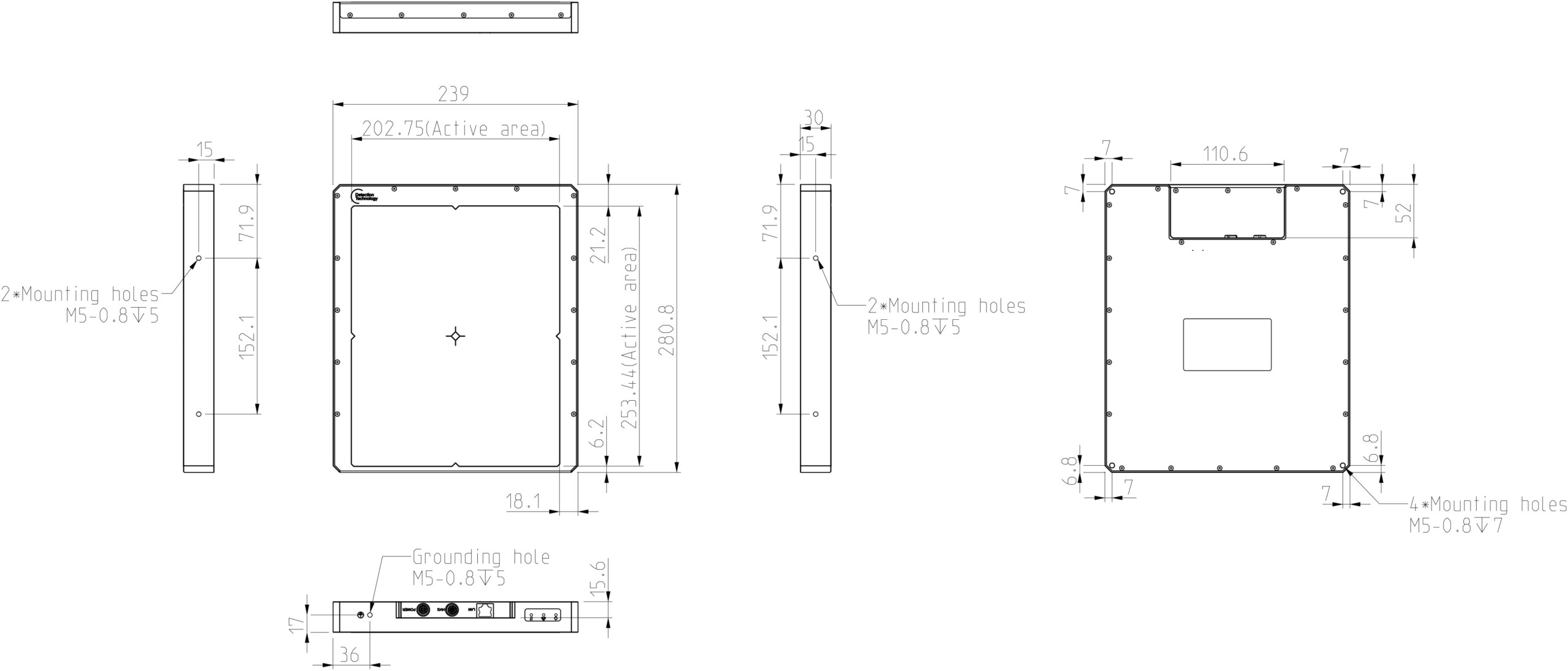

| Dimensions (H x W x D) | 281 x 239 x 30 mm |
| Weight | 3.4 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 20.5 W |
| Applications | Dental CBCT |
