P/N: 3000024465

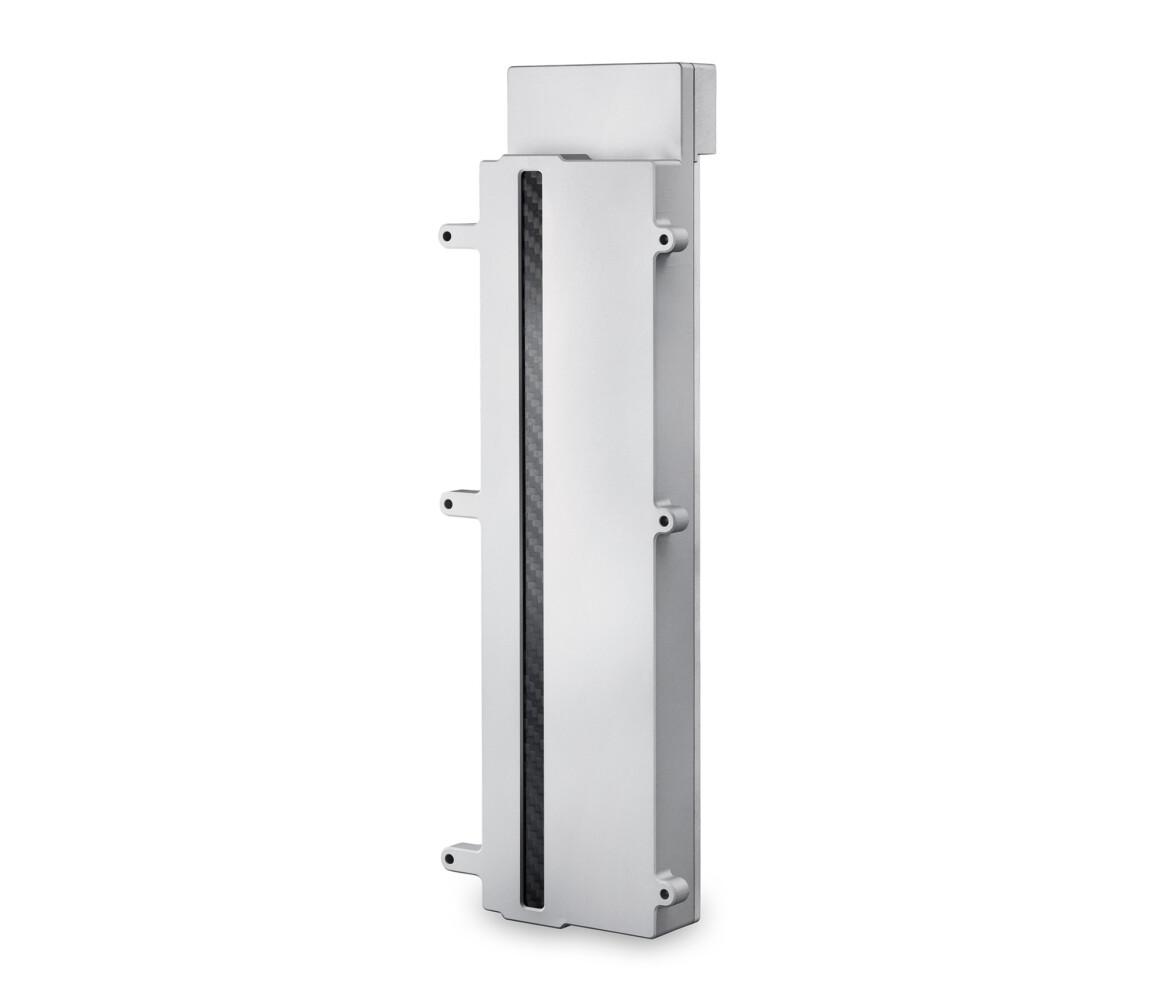

X-Panel 2301c FXM
X-Panel 2301c FXM is a dynamic CMOS flat panel detector optimized for dental panoramic and cephalometric imaging.
| Product | X-Panel 2301c FXM |
| Technology | |
| Sensor | CMOS |
| Scintillator | CsI |
| Active area | 233 x 7 |
| Pixel matrix | 2332 x 72 |
| Pixel pitch | 100 µm |
| ADC | 14 bits |
| Interface | |
| Data interface | Gigabit ethernet |
| Max frame rate | Up to 303 fps |
| Mechanics | |

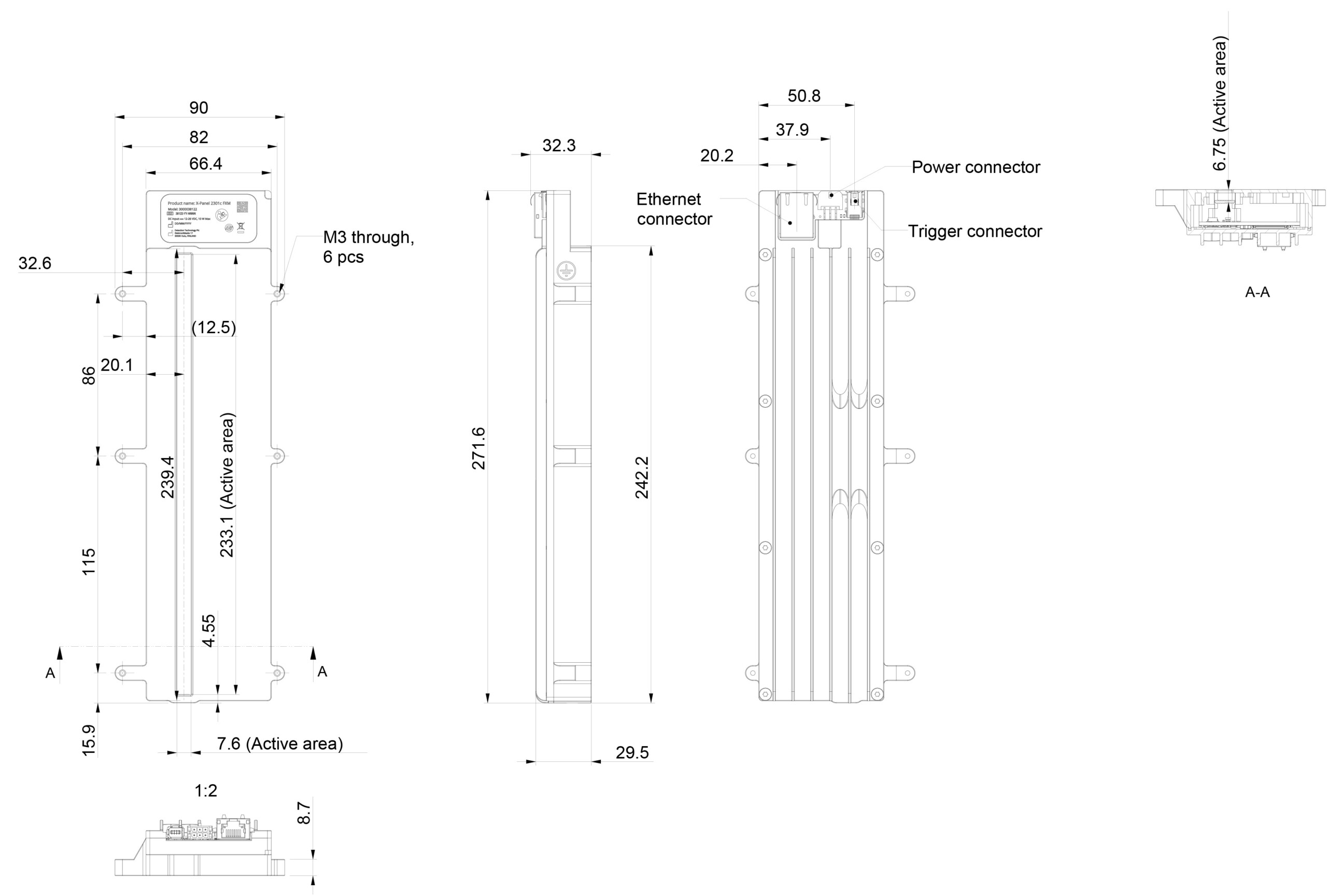

| Dimensions (H x W x D) | 272 x 90 x 32 mm |
| Weight | 1.0 kg |
| Environmental | |
| Temperature | 10~40°C (operating); -10~50°C (storage) |
| Humidity | 20~60% RH (non-condensing) |
| IP rating | IP40 |
| Power | |
| Dissipation | <10 W |
| Applications | Dental Cephalometric |
