P/N: 3000041944
X-Panel 2121a FDM-CSV
X-Panel 2121a FDM-CSV is a dynamic amorphous silicon (a-Si-TFT) flat panel detector optimized for Image Intensifier replacement in surgical imaging.
| Product | X-Panel 2121a FDM-CSV |
| Technology | |
| Sensor | a-SI |
| Scintillator | CsI |
| Active area | 204 x 204 mm |
| Pixel matrix | 1024 x 1024 |
| Pixel pitch | 200 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | Gigabit ethernet |
| Max frame rate | 30 fps (1×1) |
| Mechanics | |

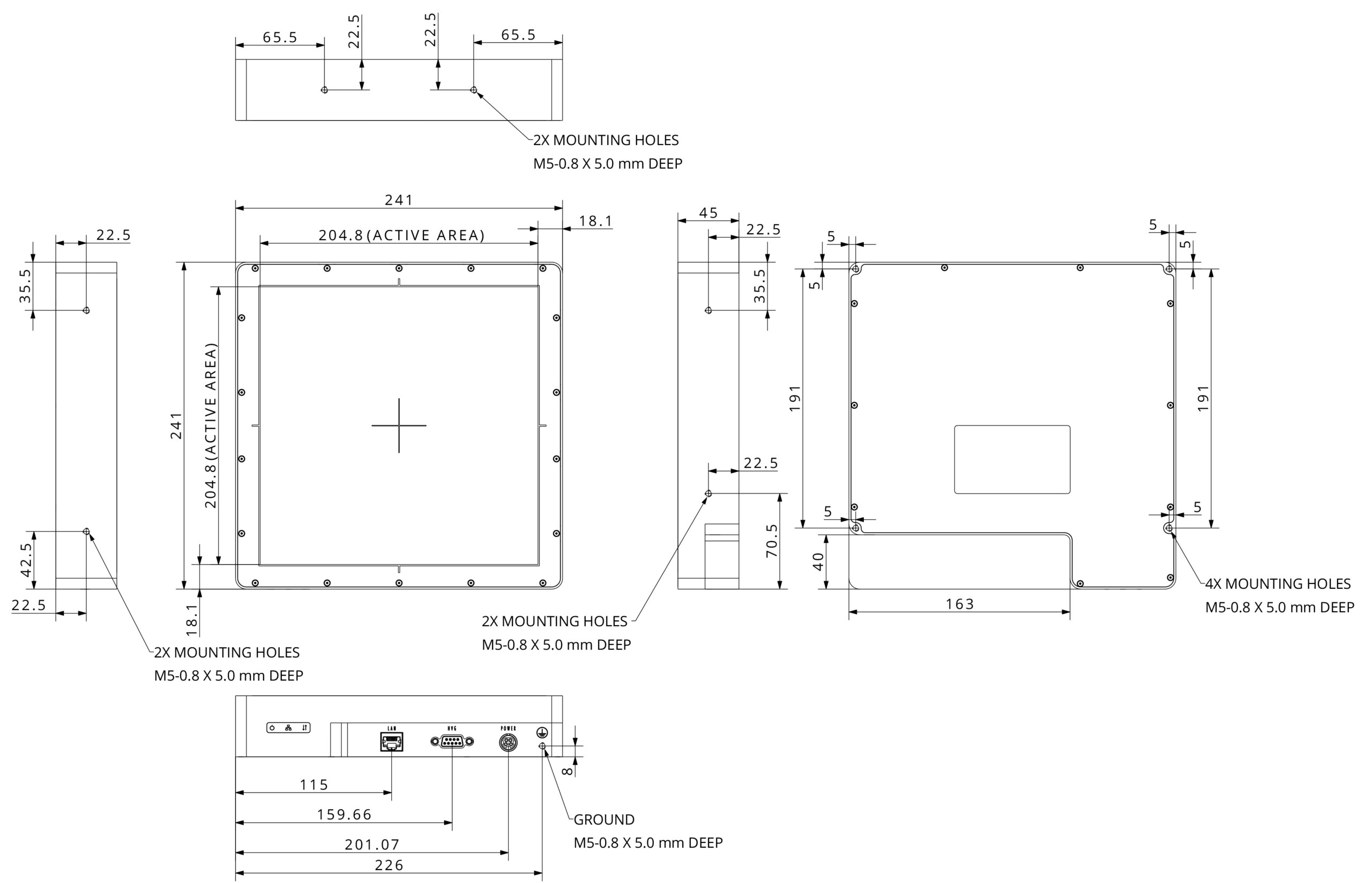

| Dimensions (H x W x D) | 241 x 241 x 45 mm |
| Weight | 2.9 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 9.5 W |
| Applications | Surgical, C-arm, ESWL |
