P/N: 3000041918
X-Panel 2121a FDI-GPG
X-Panel 2121a FDI-GPG is a dynamic amorphous silicon (a-Si-TFT) flat panel detector with DRZ-Plus scintillator optimized for NDT applications up to 160 kV max energy.
| Product | X-Panel 2121a FDI-GPG |
| Technology | |
| Sensor | a-Si-TFT |
| Scintillator | DRZ-Plus |
| Active area | 204 x 204 mm |
| Pixel matrix | 1024 x 1024 |
| Pixel pitch | 200 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | Gigabit Ethernet |
| Max frame rate | 30 fps (1×1) |
| Mechanics | |

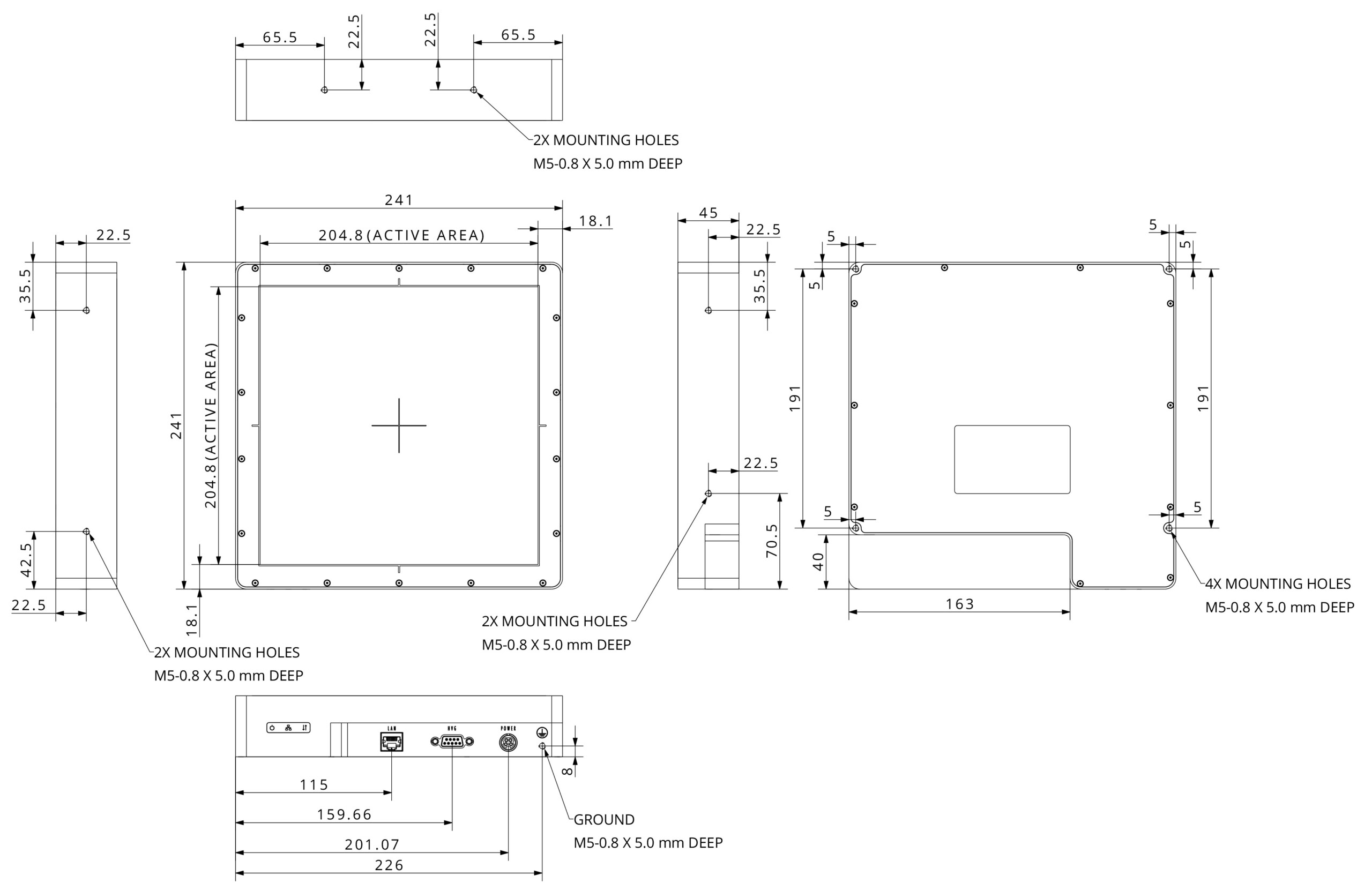

| Dimensions (H x W x D) | 241 x 241 x 45 mm |
| Weight | 2.9 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 9.5 W |
| Applications | Casting, pipe welding, pressure container |
