P/N: 3000048753
X-Panel 1818z FDI-CSV
X-Panel 1818z FDI-CSV is a dynamic high-resolution Indium Gallium Zinc Oxide (IGZO-TFT) flat panel detector with CsI scintillator optimized for electronics inspection up to 160 kV max energy.
| Product | X-Panel 1818z FDI-CSV |
| Technology | |
| Sensor | IGZO-TFT |
| Scintillator | CsI |
| Active area | 172 x 172 mm |
| Pixel matrix | 2048 x 2048 |
| Pixel pitch | 84 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 10 G Ethernet |
| Max frame rate | 30 fps (1×1) |
| Mechanics | |

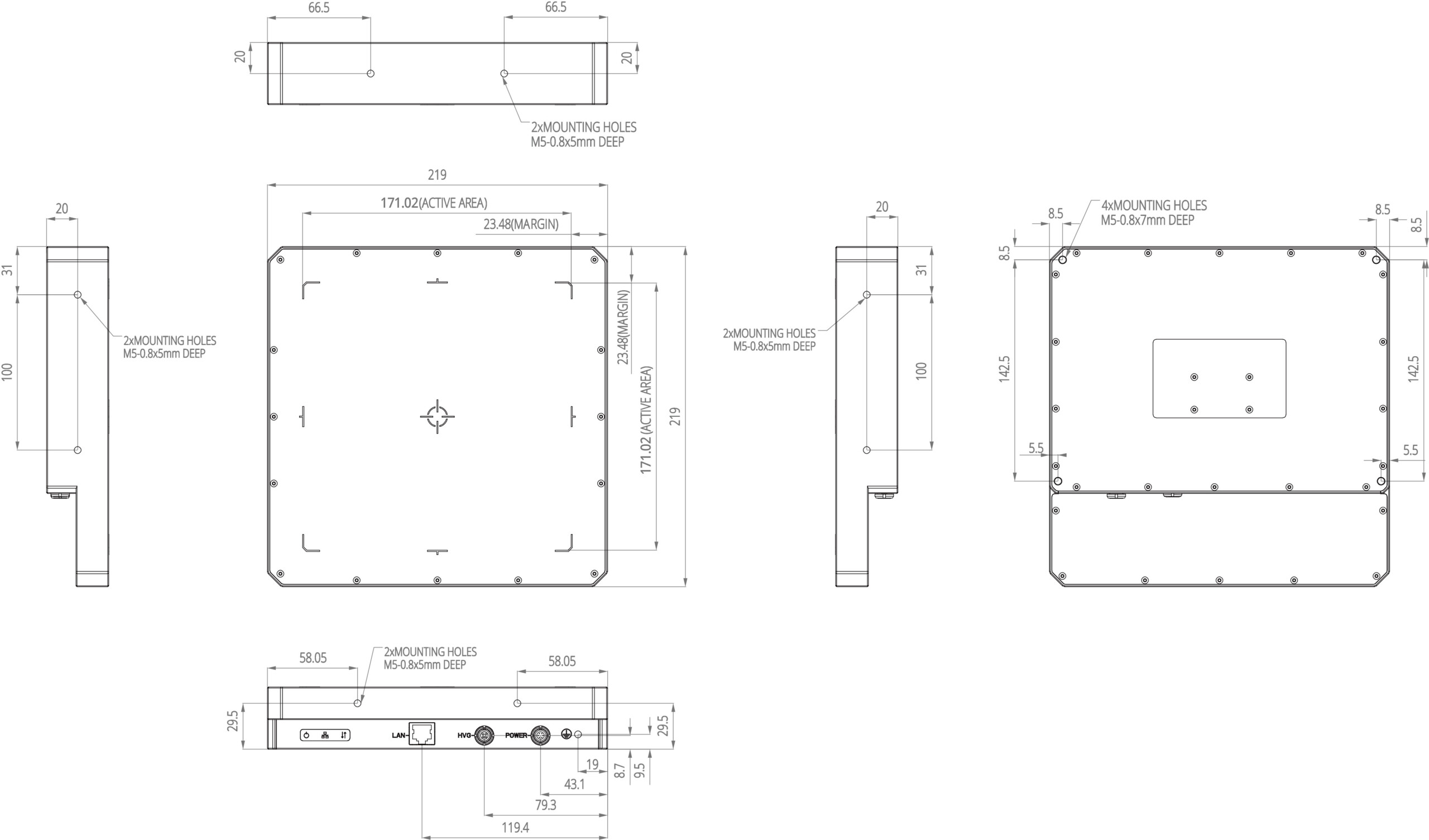

| Dimensions (H x W x D) | 219 x 219 x 40 mm |
| Weight | 2.3 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 25.5 W |
| Applications | SMT, battery inspections |
