P/N: 3000048955

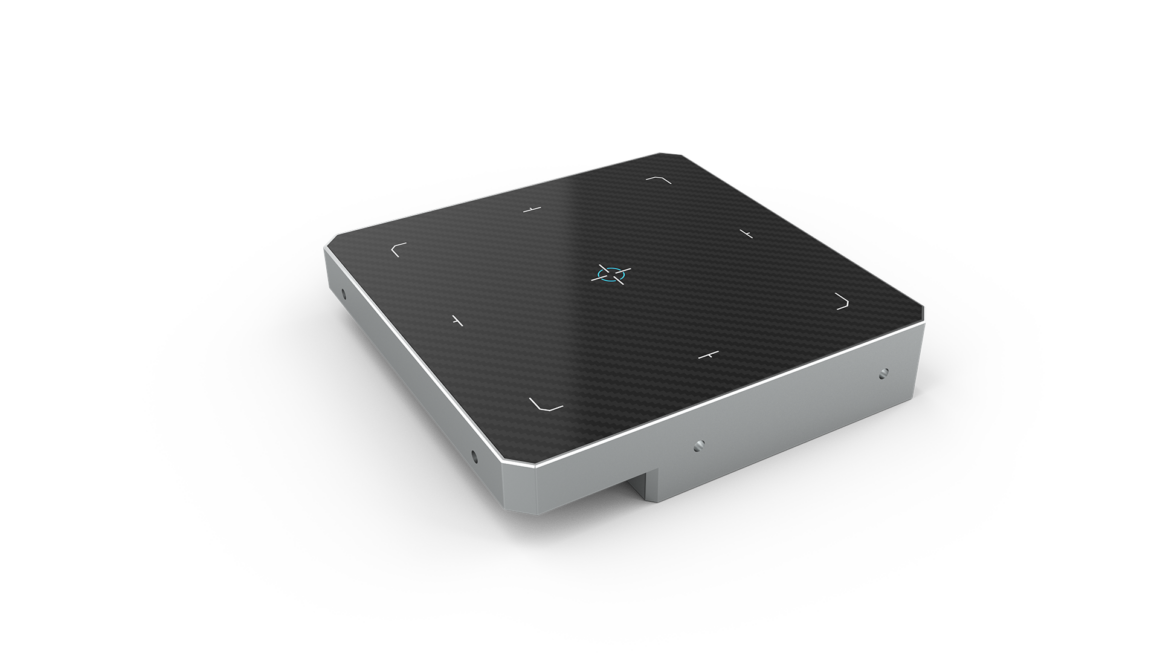

X-Panel 1313z FDI-CSV
X-Panel 1313z FDI-CSV is a dynamic high-resolution Indium Gallium Zinc Oxide (IGZO-TFT) flat panel detector with CsI scintillator optimized for electronics inspection up to 160 kV max energy.
| Product | X-Panel 1313z FDI-CSV |
| Technology | |
| Sensor | IGZO-TFT |
| Scintillator | CsI |
| Active area | 129 x 129 mm |
| Pixel matrix | 1536 x 1536 |
| Pixel pitch | 84 μm |
| ADC | 16 bits |
| Interface | |
| Data interface | 2.5 G Ethernet |
| Max frame rate | 40 fps (1×1) |

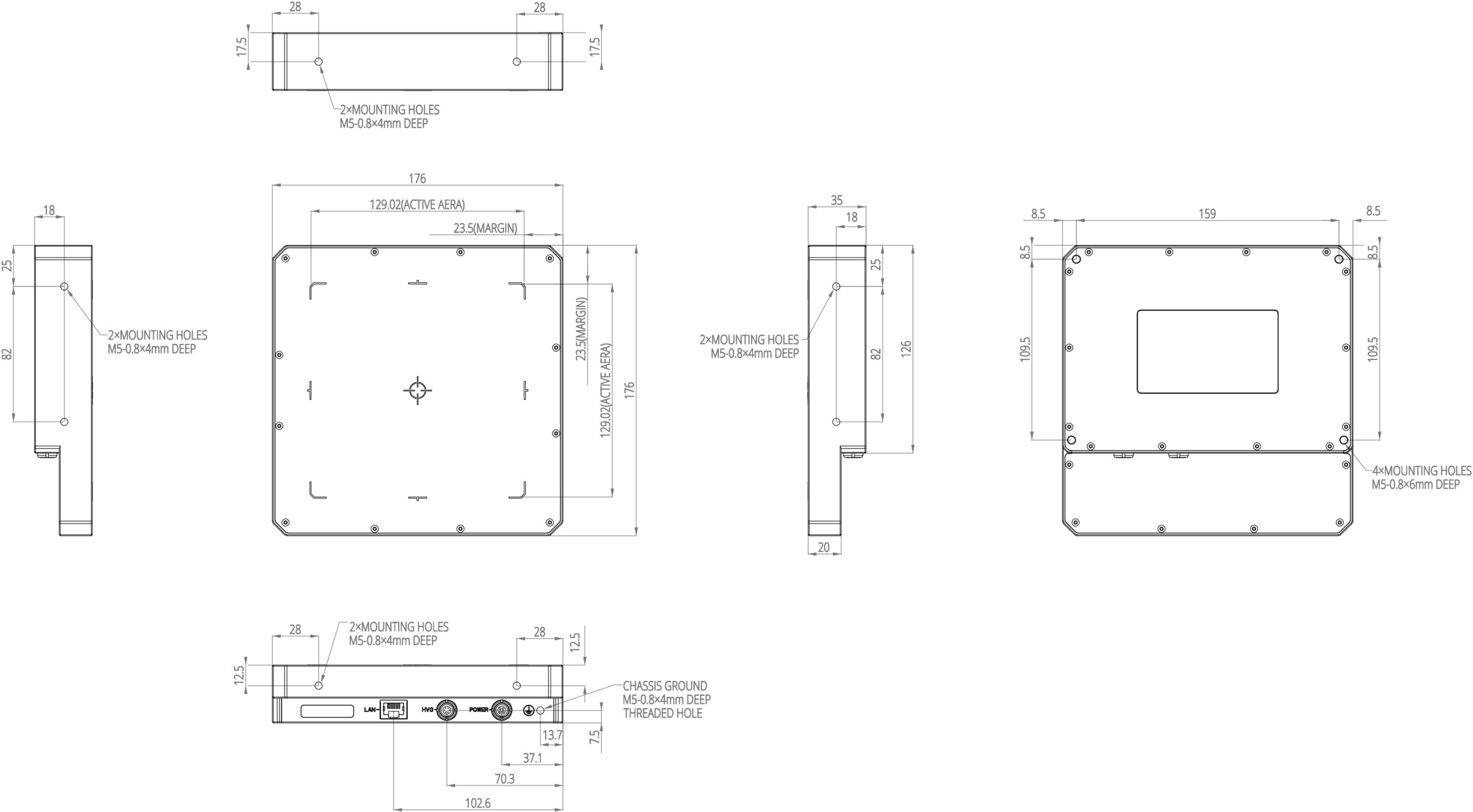

| Mechanics | |
| Dimensions (H x W x D) | 176 x 176 x 35 mm |
| Weight | 1.4 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 13 W |
| Applications | SMT, battery inspection |
