P/N: 3000041979

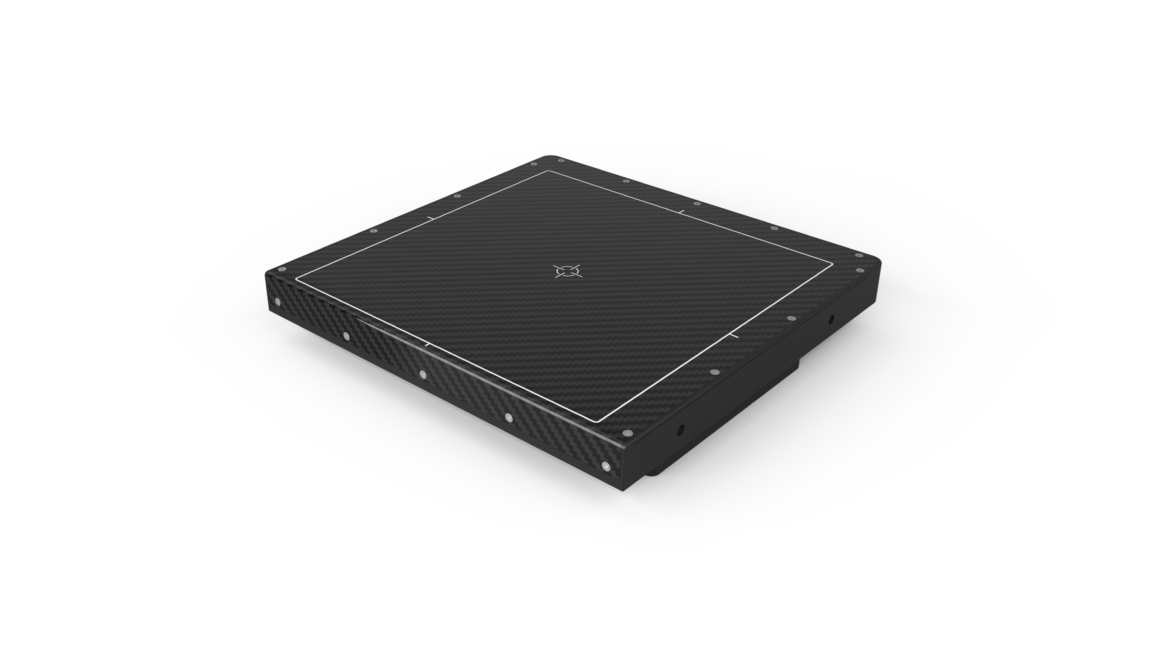

X-Panel 1717z FDM-CSV
X-Panel 1717z FDM-CSV is a dynamic Indium Gallium Zinc Oxide (IGZO-TFT) flat panel detector optimized for dental panoramic and CBCT imaging.
| Product | X-Panel 1717z FDM-CSV |
| Technology | |
| Sensor | IGZO-TFT |
| Scintillator | CsI |
| Active area | 170 x 170 mm |
| Pixel matrix | 1536 x 1536 |
| Pixel pitch | 111 µm |
| ADC | 16 bits |
| Interface | |
| Data interface | 2.5 G Ethernet |
| Max frame rate | 40 fps |
| Mechanics | |

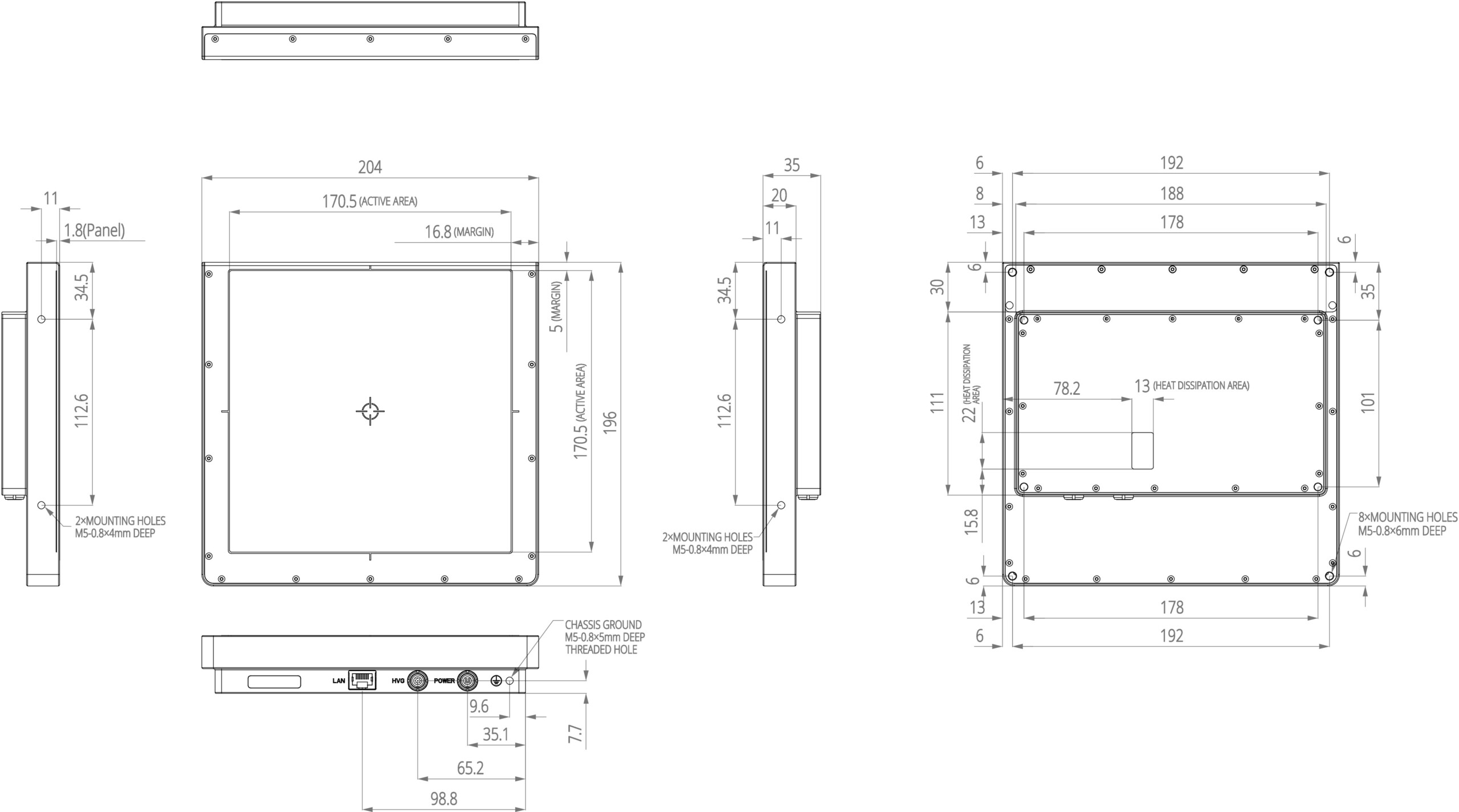

| Dimensions (H x W x D) | 204 x 196 x 35 mm |
| Weight | 2.0 kg |
| Environmental | |
| Temperature | 10~35°C (operating); -10~50°C (storage) |
| Humidity | 30~70% RH (non-condensing) |
| IP rating | IPX0 |
| Power | |
| Dissipation | 11.5 W |
| Applications | Dental CBCT |
